MXT3207 Series
MXT

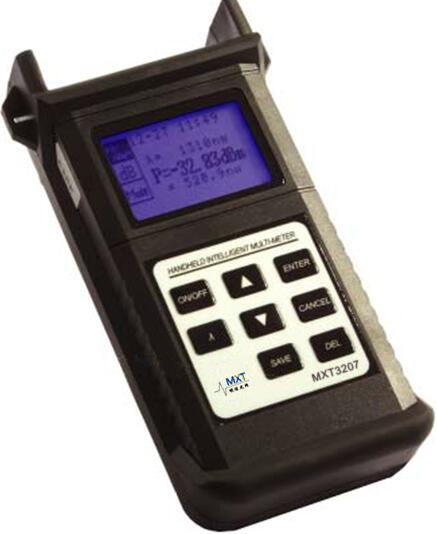

MXT3207 handheld optical multi meter integrates the functions of an intelligent optical power meter module and of a highly stable light source module in one unit which can perform closed-loop tests by incorporating both modules. Individual regimes of operation can also be manually chosen using menu operation to switch functions. A perfect combination to make your optical fiber tests a lot more convenient.
Features
● Includes all the outstanding functions of handheld intelligent power meter(MXT3206)
● Includes all the outstanding functions of handheld stable light source(MXT3108)
● Switching of the power meter function and that of the light source by menu operation
● Different light sources and power meters can be built into MXT3207
Applications
● Maintenance in Telecom
● Maintenance CATV
● Fiber Optic Lab Testing
● Other Fiber Optic Measurements
Specifications
Type | MXT3207A | MXT3207C |
Optical Power Meter Module | ||
Detector Type | IngaAs | |
Measurement Range(dBm) | -70~+6 | -50~+26 |
Uncertainty | 5% | |
Calibrated wavelengths(nm) | 850,980,1300,1310,1490,1550 | |
Rosolution(dB) | 0.01 | |
Data Storage Capacity | 240 data items | |
Identification Frequency Rang | 10Hz~60KHz | |
Optical Connector | FC(interchangeable SC,ST) | |
Optical Light Source Module | ||
Emitter Type | FP-LD | |
Wavelengths | 1310/1550(other wavelengths can be optional) | |
Ouput Power(dBm) | -7 | |
Spectral Width | ≤10nm | |
Output Stability | ±0.05dB/15mins; ±0.1dB/ 8hours | |
Modulation Frequencies | 270Hz, 1KHz, 2KHz | |
Optical Connector | FC/ PC | |
General Specifications of Multi Meter | ||
Power Supply | Rechargeable Battery + Power Supply Adaptor | |
Communication Interface | RS232 | |
Battery Operating Time | ≥6 hours(Both Power Meter and Light Source are working) ≥28hours(Only Power Meter is working) | |
Auto-off time | 10mins | |
Operating Temperature(℃) | -10~+60 | |
Storage Temperature(℃) | -25~+70 | |
Dimension(mm) | 210x115x55 | |
Weight (g) | 540 | |
Standard Packages
MODEL | INCLUDES |
MXT3207 Models | MXT3207 Multimeter, Protective Rubber Rechargeable battery Power Supply Adaptor, Software Disk, Data upload Cable RS232, User Manual, Cotton swabs,Rigid hard carrying case,can be optional |
