Fiber Cleaver

1       2

Features

High-precision optical fiber cleaver is suitable for precise cutting of single-core optical fibers. It’s suitable for both 250μm coated optical fibers and 900μm coated optical fibers. Cutting is more accurate without special skills.


Parameter

Cutting Angle: 0.5°

Cut-Off Length: 0.9mm optical fiber 10-16mm; 0.25mm optical fiber 9-16mm

Fiber Packet Diameter: 125μm

Covered Outer Diameter: 0.25 & 0.9 mm

Size: 63W*76D*63H(mm)

Weight: 430g

Blade Life: 36000 core (1000 core x 12 blade angle x 3 blade height)

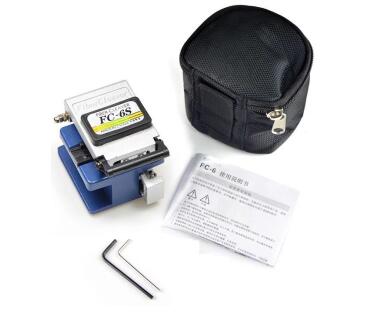

Standard Accessories

3
