MXT4103
MXT

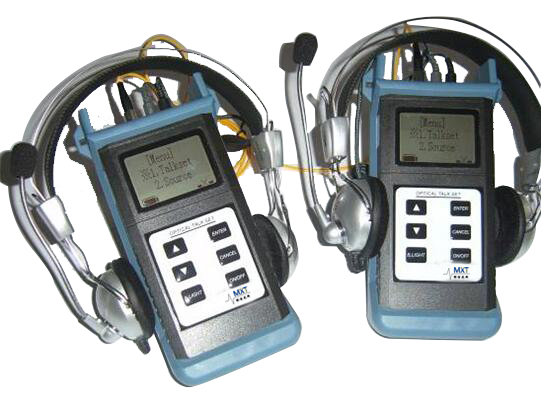

MXT4103 Optical Talk Set is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network. The MXT4103 Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance.
Features
●Full-duplex digital communication with high quality conversation connection and low background noise
● Together with Optical Clip-on Coupler, enables on line communications available
● Combining functions of both a digital optical phone call and a stabilized light source.
● Large LCD display with backlight
● Low battery power indication
Applications
● Maintenance in Telecom
● Maintenance CATV
● Fiber Optic Lab Testing
● Other Fiber Optic Measurements
Specifications
Type | MXT4103 |
Wavelength(nm) | 1310/1550 |
Emitter Type | FP-LD |
Transmission Distance | ≥80km |
Dynamic Range | 40dB |
Output Power | -5~-7dBm(9/125um), CW or 2KHz, 1KHz, 270Hz Modulation |
Output Stability | ±0.1dB/±0.25dB(1/8hrs) CW |
Power Supply | Rechargeable Battery + Power Supply Adaptor |
Battery Operating Time | 5 hours |
Optical Connector | FC/PC |
Operating Temperature(℃) | -10 ~ +60 |
Storage Temperature(℃) | -25 ~ +70 |
Dimension(mm) | 215X115X55 |
Weight(g) | 520 |
Remark: MXT also provides Fiber Optic Clip-on Coupler device according to customers needs. | |
Standard Packages
MODEL | INCLUDES |
MXT4103 | MXT4103 Optical Talk Set (pair), Protective Rubber Boot, Headset, Rechargeable battery, Power Supply Adaptor, User Manual, Cotton swabs and soft carrying case. |
