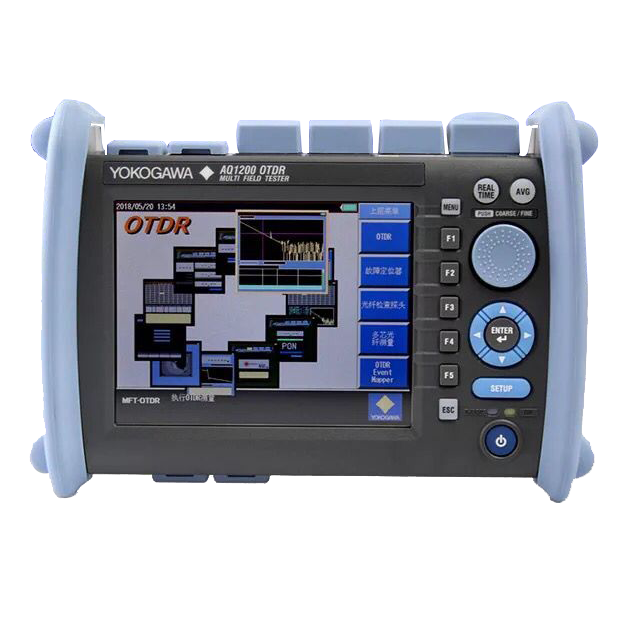

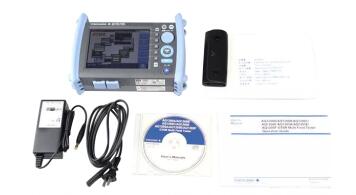

MXT-1200 Optical Time Domain Reflectometer

Measurement Wavelength

1310nm 1550nm

1310nm 1550nm

Suitable Optical Fiber

SM

SM

Test Range

0.5~256km

0.5~512km

Pulse Width

3~20000ns

3~20000ns

Events Blind Area

0.8m

0.75m

Attenuation Blind Area

4m/5m

4m/5m

Dynamic Range

32/30dB

34/32dB

Sampling Resolution

0.05m

0.05m

Sampling Resolution

256000

128000

Range Accuracy

±(1m+measuring distance*2*10-5±sampling resolution)

Loss Measurement Accuracy

±0.03dB/dB

±0.05dB/dB

Optical Connector

FC

FC

Display

5.0 inch 800x480 color capacitive touch screen

5.7 inch 640x480 color TFT LCD

Read The Accuracy

0.0001dB(Min.)

0.0001dB(Min.)

Storage Capacity

> 1000 waveforms

> 1000 waveforms

External Interface

USB1.1

USB1.1

File Format

Read :SQR  Save :SQR

Working Environment

Working Temperature: 0℃~45℃, Storage Temperature:-20℃~60℃; Humidity:20~85%RH(No condensation)

Power Supply Requirements

100~240VAC，50/60Hz

Battery

Lasts 10 hours and takes 6 hours to recharge

Lasts 6 hours and takes 5 hours to recharge

External Size

185(W)x116(H)x56(D)mmExcept the protective part

217(W)x157(H)x74(D)mmExcept the protective part

Weight

About 660g (including battery)

About 1kg (including battery)

Function

Multi - core measurement, fault locator, end - face monitoring

Option

Optical Power Meter, Light Source, Visible Light Source, AQ7932 Simulation Software
