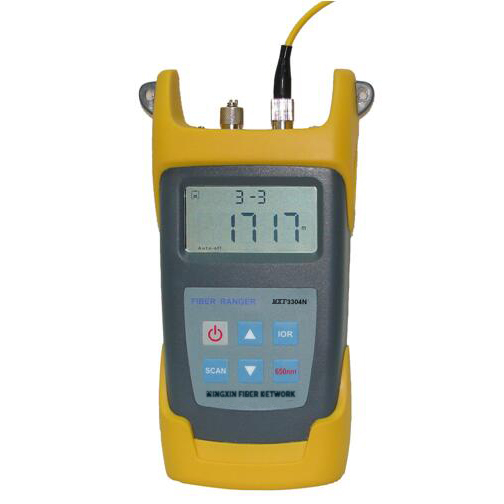

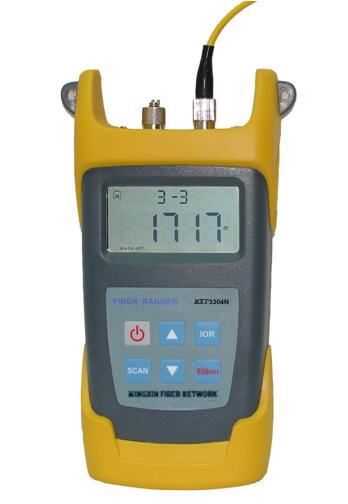

MXT3304N Optical Fiber Ranger

MXT3304N Optical Fiber Ranger is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the MXT3304N fiber ranger detect fiber faults location more accurate and easy.

  • MXT3304N
  • MXT

MXT3304N Optical Fiber Ranger is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the MXT3304N fiber ranger detect fiber faults location more accurate and easy.


Main Features

● Portable, rugged, lightweight; Easy to use.

● More accurate testing results and better repeatability.

● Up to 8 fiber faults can be detected in each measurement.

● Automatic Pulse Width Control design to ensure a convenient operation.

● Easy to identify the faults location.

● Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.

● Dust, water and shock proof, designed for field use

● Long battery life, up to 5000 measurements operation.


Applications

● Testing the distance of the fiber and identify the faults location in the fiber link.

● Locates reflective and non-reflective breaks in the fiber network.

● Inspection of fiber repair and maintenance.

MXT3304N Fiber Ranger is ideal to be used in FTTx network installation and maintenance.


Specifications

Model

MXT3304N

Operating Wavelength

1550nm(1310nm Optional)

Fiber Type

9/125um SM Fiber

Optical Connector Type

FC/PC

Detector Type

InGaAs

Peak Power of laser

≥60mW

Max. Displaying Distance

Reflection Event

60km (≥1dB)

Non-reflection Event

20km (≥2.5dB)

Measurement Unit

m

Reflection Event Dead Zone

15m

Distance Accuracy(Reflection Event)

±(2m+2*10(-3)*Distance)

Wavelength of VFL Option

650nm

Output Power of VFL Option

>=1mW

Power Supply

Alkaline Battery (3pcs AA 4.5V Batteries)

Battery Operating Time

≥5000 measurements

Working Temperature

-5~40℃

Storage Temperature

-10~60℃

Humidity

0~85%(Non-condensation)

Dimensions

190*100*50mm

Weight(g)

450


Standard Packages

MODEL

INCLUDES

MXT3304N

MXT3304N Fiber Ranager, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case.
