MXT3303
MXT

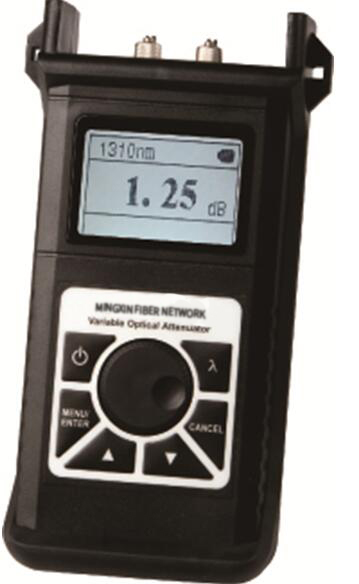

MXT3303 handheld optical variable attenuator is used for continuously variable optical signal attenuation. As the attenuator is used in the laser system for the on-line testing, therefore, MXT3303 can be used in the digital system of communication devices (such as: PHD, SDH) and also in the system of adopting analog modulation (CATV)
Main Features
● Stepwise attenuating by circumgyrated dial: attenuating step 0.05dB
● Provide with the function of displaying dB and dBm attenuating value
● 10 minutes Auto-off function can be activate and deactivate with keypad operation.
●After off the instruments, the system will have the memorizing of the attenuating value and the attenuating step, in order to restore the system back to the previous shut down state when open the instruments next time
● Portable, rugged, lightweight; Easy to use.
Applications
● Telecom Maintenance
● CATV Maintenance
● Comprehensive cable construction system
● Optical instruments research and development
● Optical communication education and lab testing
● Other optical project
Specifications
Type | MXT3303 |
Attenuating wavelength Range | 1260~1650nm |
Fiber Model | 9/125um SM |
Optical Connector | FC/PC |
Calibrated wavelengths | 1310/1490/1550/1625nm |
Measurement Range | 2.5~65dB |
Resolution | 0.05dB |
Minimize Insertion Loss | ＜2.5dB |
Linearity | ±0.5dB |
Repeating | ±0.2dB |
Attenuating Accuracy | ±0.8dB |
Return Loss at Input/ Output | ＞35dB（typical value40dB） |
Max input | ＋20dBm |
Displaying type | lattice 128*64 black and white, white back ground light |
Rechargeable batteries | 7.4V |
Power supply adaptor | 7~8.5V |
Operation temperature | 0~40℃ |
Storage temperature | -10~60℃ |
humidity | 0~85%（non- condensation） |
Dimensions | 210X115X55 |
Weight | 450g |
Standard Packages
MODEL | INCLUDES |
MXT3303 | MXT3303 Main Body, Protective Rubber Boot, Rechargeable battery, Power Supply Adaptor, Instruction Manual and Cotton Swabs and Rigid hard carrying case. |
