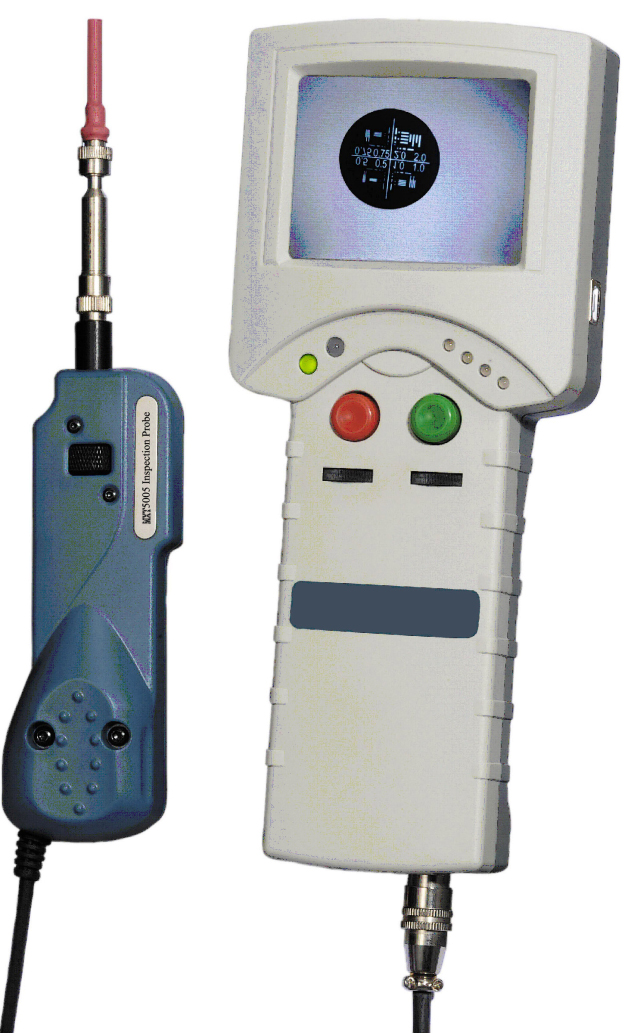

MXT5005-H Probe Fiber Microscopes

MXT5005-H Probe Fiber Microscopes includes two basic parts of Fiber Inspection Probe and display (Monitor). It offers 200 times magnification for the fibers of 125um diameter (both SM and MM fibers are included) with the 3.5 inch display. It not only can be used to inspect the male connector ends but also to inspect the female bulkhead adapters.

  • MXT5005-H
  • MXT



    MXT5005-H Probe Fiber Microscopes includes two basic parts of Fiber Inspection Probe and display (Monitor). It offers 200 times magnification for the fibers of 125um diameter (both SM and MM fibers are included) with the 3.5 inch display. It not only can be used to inspect the male connector ends but also to inspect the female bulkhead adapters.

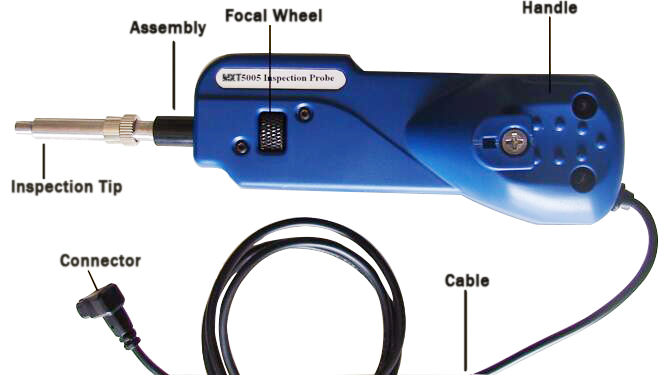

Main Features of Inspection Probe

Convenient fiber inspection function

Not only to inspect the fiber ends with male connectors directly, but also to inspect the fiber ends with female bulkhead adapters.

Different tips to meet fiber inspection with different fiber connectors and adapters

Inspect the fiber ends with different connector types

MXT5005-H  (3.5inch Display)

● Magnification:200x

● Resolution: 1um

● Display type:TFT-LCD(25000pixel)

Image diameter:25 mm

Brightness and lightness adjustable, convenient for observing.

Battery Life: 5~6 hours

Power:lithium battery and battery charger 110~220V / 12V

Output port: USB2.0 and image capture software available (Optional)


Configuration of MXT5005-H

Mode

Name

Qty

Remark

MXT5005

Fiber Inspection Probe

1pcs

Standard

Accessories

MXT35

Handheld Display (3.5inch)

1pcs

2.5PC-M

Male Tip

1pcs

LC Adapter

Male Tip

1pcs

FC/SC-F

Female Tip

1pcs

ST-F

Female Tip

1pcs

LC/MU-F

Female Tip

1pcs


Battery and Battery Charger

1pcs each


Soft Carrying Case

1pcs


User Manual

1pcs

SC-F-APC

Female Tip

1pcs

Optional Accessories

FC-F-APC

Female Tip

1pcs

E2000-F

Female Tip

1pcs

MU-M

Male Tip

1pcs

2.5M-APC

Male Tip

1pcs
