MXT
Optical Adapters for Optical Power Meter Output

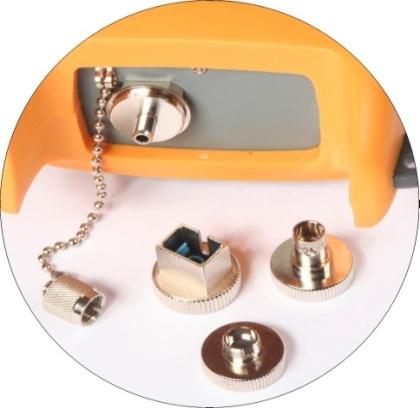

Option 1: FC, SC, ST Interchangeable / 2.5mm universal connector adapter Port
is the most commonly used connector type for MXT Optical power meters.
It features:
a) Interchangeable FC, SC, ST connector adapters, which means the
user can choose any of the FC, SC, ST adapters to be fixed well with
the connectors. Changing the adapter is very simple: unscrew one
and screw in the next. Please refer to the picture below for a better
understanding.
b) 2.5mm Universal connector adapter. After unscrewing any of the
interchangeable connector adapters, the user will see a fixed 2.5mm
metal plug which we call a 2.5mm universal connector adapter. It can
accept most of the 2.5mm diameter ferrule connectors, such as FC,SC, ST,DIN, E2000 and SMA. It means that with one plug a variety of connectors can be connected as long as the ferrule diameter is 2.5mm. These connectors however use only a push/pull mechanism and cannot to be fixed or screwed. Please refer to the right picture for a better understanding.
Note: Usually, if no customer special requests, we will use this type connector port as
the standard adaptor for our Handheld optical power meters.

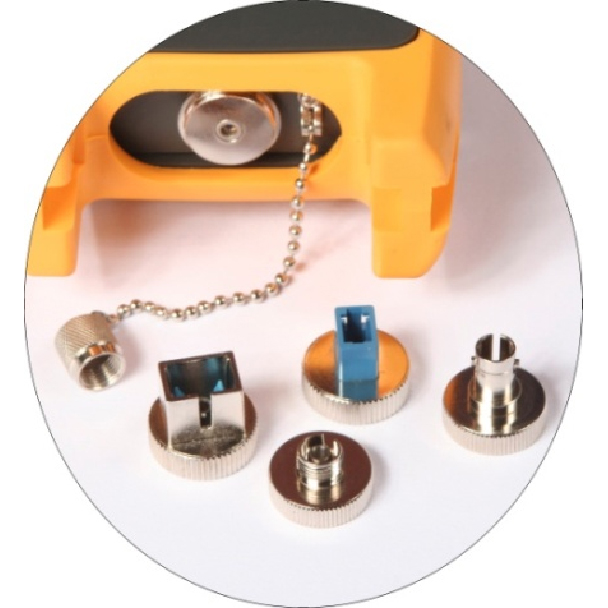

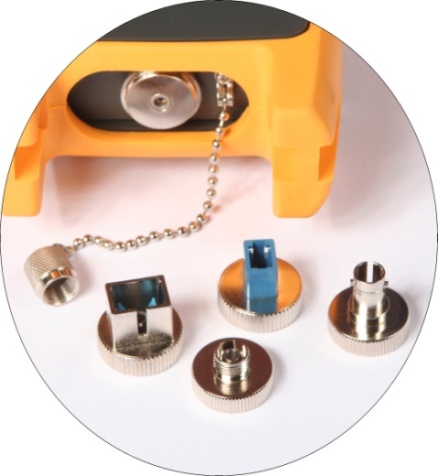

Option 2: LC, SC, ST, FC Interchangeable adapters Port (No Universal
Adapter Available)
To meet the requirements of the LC connector type, we specially released the
Option 2 interchangeable connector adapters.
It features:
a) LC, SC, ST, FC connector adapters can be interchangeable,
which means the user can choose any one of LC,SC ,ST and FC adapters
to be fixed well with the connectors. Changing the adapter is very simple,
unscrew one and screw in the next. Please refer to the picture below for a
better understanding.
b) No universal connector adapter available.
Please refer to the pictures below for a better understanding!
Optical Adapters for Light Source Output
Option 1: FC fixed connector Port
FC fixed connector port type is the most commonly used in Optical Light Sources with features of reliability and high accuracy in measurement!
Note: Usually, if no customer special requests, we will use this type
connector port as the standard adaptor for our Handheld optical Light
Source.

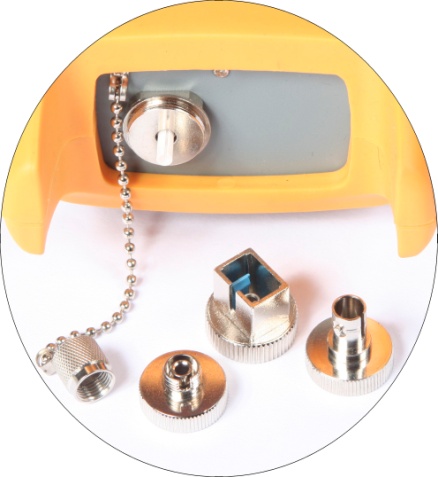

Option 2: FC, SC, ST interchangeable connector Port
FC, SC, ST connector adapters can be interchangeable, it means the
user can choose any one of FC,SC ,ST adapters to be fixed well with
the connectors. Changing the adapter is very simple, unscrew one and
screw in the next. Please refer to the picture below for a better
understanding.
Note: Connecting directly with the 2.5 ceramic ferrule is not recommended in order to avoid any damage of the ceramic ferrule. Please connect with connectors after screwing the corresponding connector adapter.
To satisfy with customers’ various requests for adaptors, we also can supply custom made adapters according to customers’ special requests. Detailed adapter pictures cannot be shown here individually, so please feel free to ask us if what you require is not presented here!
