MXT3306A
MXT

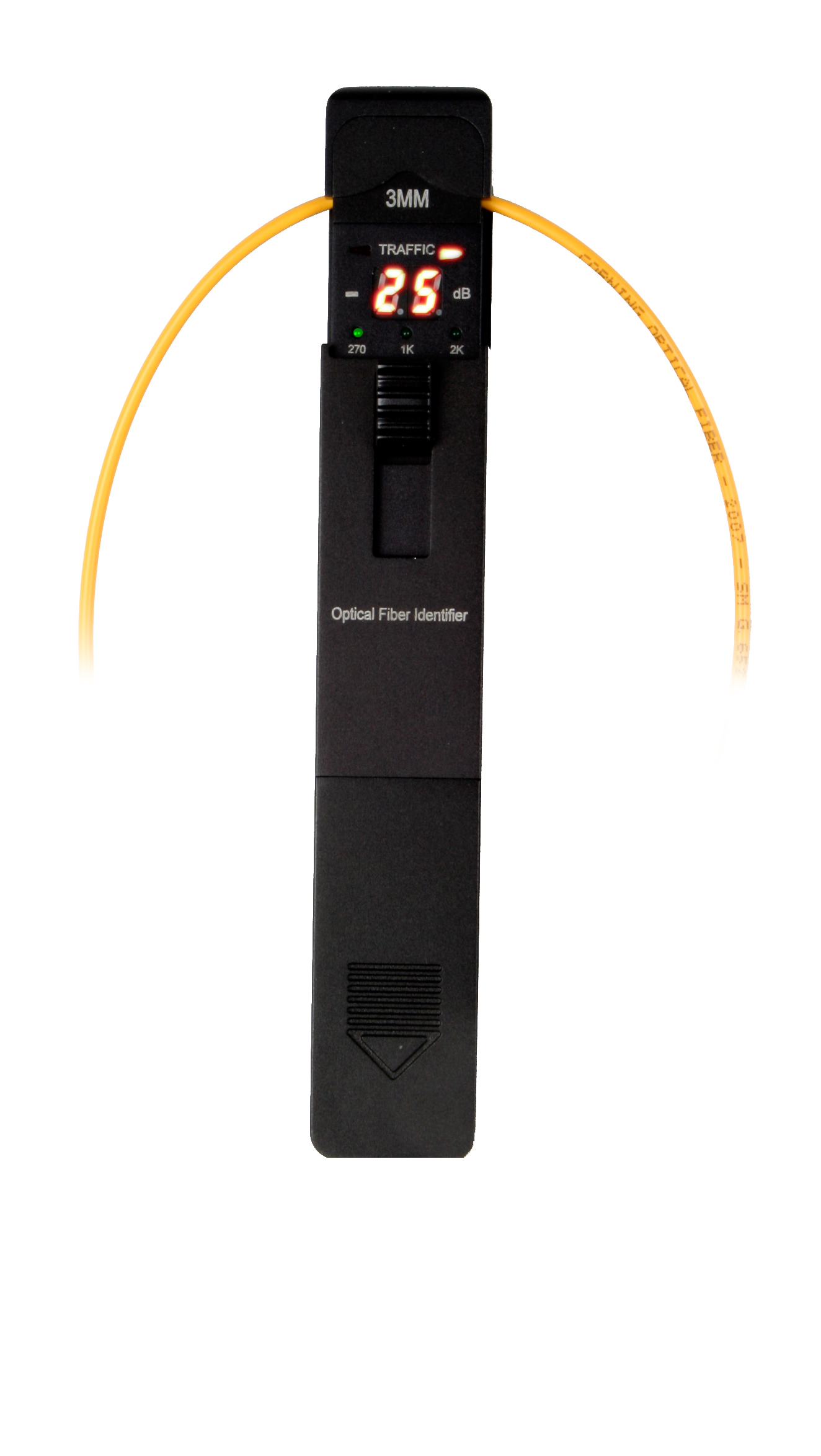

MXT3306A Optical Fiber Identifier is an essential installation and maintenance instrument. By inserting the fiber into its adapter head, it can identify SM optical fibers without any damage by detecting the optical signals being transmitted through them so as to avoid the opening of the fiber at the splice point for identification and thus avoids the interruption of the service.In the presence of traffic, the intermittently audible tone is activated.The MXT3306A optical fiber identifier also allows relative core power display and identification of the 270Hz,1kHz and 2kHz frequencies. When they are used to detect the frequency, the continuously audible tone is activated. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The MXT3306A optical fiber identifier is powered by a 9V alkaline battery.
Features
● Easy-to-use with “ONE KEY” operation.
●Efficiently identifies the traffic direction and frequency tone (270Hz,1KHz, 2KHz) with audible warning.
● Displays the core power of the fibers (-50~+0dBm)
● Low bending loss and highly efficient output
● Easy-to-replace adaptors (Ø0.25, Ø0.9, Ø2.0, Ø3.0 to match
various optical cables)
● Mechanical damp design of adapter heads to ensure the fiber
without damage.
● Durable metal housing and quality construction
Applications
● Maintenance in Telecom
● Maintenance CATV
● Fiber Optic Lab Testing
● Other Fiber Optic Measurements
Specifications
Type | MXT3306A |
Identified Wavelength Range | 800-1700 nm |
Identified Signal Type | CW, 270Hz±5%,1kHz±5%,2kHz±5% |
Detector Type | Ø1mm InGaAs 2pcs |
Adapter Type | Ø0.25 (Applicable for Bare Fiber) |
Ø0.9 (Applicable for Ø0.9 Cable ) | |
Ø2.0 (Applicable for Ø2.0 Cable ) | |
Ø3.0 (Applicable for Ø3.0 Cable ) | |
Signal Direction | Left & Right LED |
Optical Power Reading | -50~+0dBm |
Signal Frequency | 270Hz, 1kHz, 2kHz |
Power Supply | One 9V Alkaline battery |
Operating Temperature | -10-+60℃ |
Storage Temperature | -25-+70℃ |
Dimension (mm) | 195X30X27 |
Weighgt (g) | 235 |
Standard Packages
MODEL | INCLUDES |
MXT3306A | MXT3306A Optical Fiber Identifier, 4pcs adapter heads, Alkaline battery, User Manual, Cotton swabs and Soft Carrying case. |
