Chapter 1 Standard Configuration
No. | Name | Qty |
1 | Optical Light Source | 1 |
2 | User Manual | 1 |
3 | 1.5V AA battery | 3 |
4 | Power Supply Unit | 1 |
5 | Cotton Swabs | 1 |
6 | Carry Bag | 1 |
Chapter 2 Overview
This handheld optical light source is a new released tester in 2010, designed for the fiber optical network installation, acceptance, and maintenance. Used with THE MATCHED OPTICAL POWER METER, can provide a accurate fiber network solution. According with client’s requirements, it can provide 1~4 wavelength with stable output power, and featured with continuous adjustable output power. The Intelligent backlight control function can save the power, The optical light source have smooth appearance, good touching, and friendly design, which can meet clients’ largest requirements.
Features
● Wave ID information can be transmitted when used with THE MATCHED OPTICAL POWER
METER.
● Tone generation, 270HZ,330HZ,1KHZ,2KHZ
● Output power can be adjustable
● Output power value is shown on LCD display
● Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
● AA alkaline and AC adapter for power supply
● Low battery indication
Chapter 3 Specifications
Model | Optical Light Source |
Operating wavelength（nm） | 1310/1550 (others specify on requests） |
Applicable fiber | SM ,MM |
Laser type | FP-LD(others specify on requests) |
Maximum Output Power（dBm） | -5（can be adjustable, others specify） |
Adjustable step size（dBm） | ＜0.5 (adjustable between -5~-12dBm) |
Stability(dB，15min，20℃) | ±0.1 |
Stability(dB，30min，20℃) | ±0.05 |
Modulation（Hz） | CW， 270，330，1K，2K |
Fiber Port | FC/PC or FC,SC,ST interchangeable |
Alkaline Battery | 3*AA，1.5V |
Power Supply Adaptor(V) | 8.4 |
Battery Operating time(h) | 45 |
Operation Temperature(℃) | -10～+60 |
Storage Temperature(℃) | -25～+70 |
Outline size（mm）/weight | 175*90*44.5/255g |

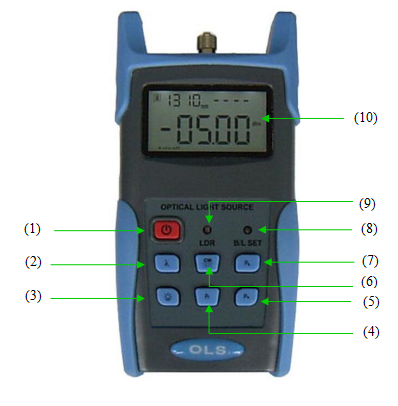

Chapter 4 Function
