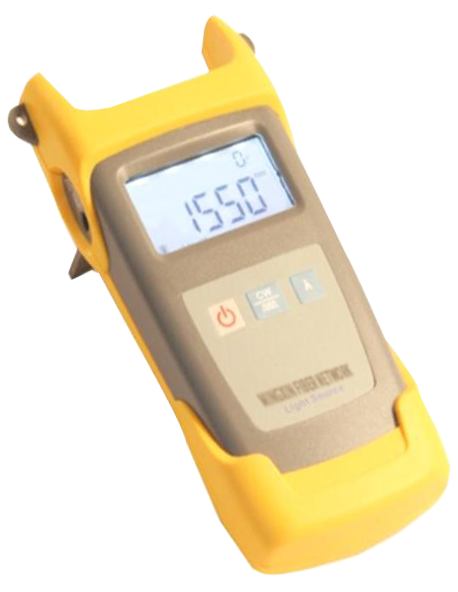

MXT3111 optical light source Is a handheld optical light source, newly released in 2007. It can provide 1 to 6 wavelengths output to satisfy specific requirements including the 650nm visible light source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer’s needs. Together with the MXT3211 optical power meter, it is a perfect solution for fiber optic network applications.
Features
● Provides 1~6 wavelengths output which can be optional according to customers’ needs
● CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other
wavelengths.
● High stability of the output power
● Stable output wavelength
● Backlight LCD display supports night operation
● Low battery power indication
Applications
● Maintenance in Telecom
● Maintenance CATV
● Fiber Optic Lab Testing
● Other Fiber Optic Measurements
Specifications
Type | MXT3111 |
Wavelengths(nm) | Provides 1~6 Wavelengths according to needs. |
Emitter Type | FP-LD,LED |
Typical Ouput Power(dBm) | 0@650nm / -7 @1310nm,1550nm, -20dBm for LED |
Spectral Width(nm) | ≤10 |
Output Stability | ±0.05dB/15mins; ±0.1dB/ 8hours |
Modulation Frequencies | CW,270Hz,1KHz,2KHz@1310nm,1550nm CW,270Hz,1KHz,2KHz |
Optical Connector | FC/PC(Other type adapters can be required) |
Power Supply | Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V) |
Battery Operating Time(hour) | 45 |
Operating Temperature(℃) | -10~+60 |
Storage Temperature(℃) | -25~+70 |
Dimension(mm) | 190X100X50 |
Weight(g) | 370 |
MXT Recommendation |
MXT3111 Handheld Light Source is designed for optimal use with MXT3211 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable. |
Standard Package
MODEL | INCLUDES |
All MXT3111 Models | MXT3111 Optical Light Source, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case. |
