MXT3108 Series
MXT

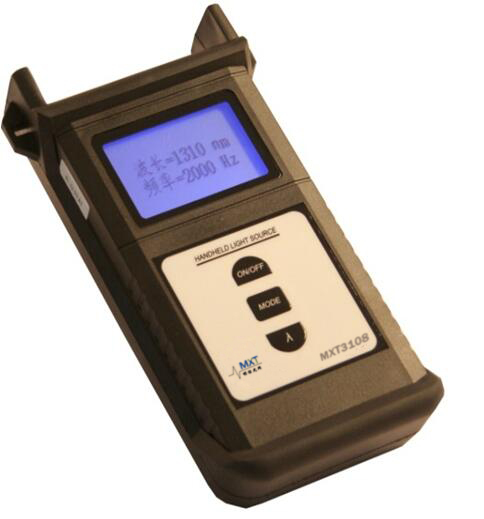

MXT3108 advanced stability handheld optical light source Is designed specially aim at users with high requirements. With featuers of durable structure, large LCD display with backlight and friendly operation interface, the MXT3108 advanced stability handheld optical light source provides a lot of convenience for your field work. High stability of output power and quite stable output wavelength, it is an ideal instrument for optical network installation, trouble shooting, maintenance and other optical fiber related systems.
Features
● Provides dual-wavelengths output and wavelengths can be optional according to customer’s needs
● CW, 270Hz,1KHz,2KHz modulation frequency output
● High stability of the output power
● Stable output wavelength
● Backlight LCD display supports night operation
● Large LCD, easy operation
Applications
● Maintenance in Telecom
● Maintenance CATV
● Fiber Optic Lab Testing
● Other Fiber Optic Measurements
Specifications
Type | MXT3108 | |
Wavelengths(nm) | 1310/1550 | 850/1300 |
Emitter Type | FP-LD | |
Ouput Power(dBm) | -7~-6 | |
Spectral Width(nm) | ≤10 | |
Output Stability | ±0.05dB/15mins; ±0.1dB/ 8hours | |
Modulation Frequencies | CW、2Hz、270Hz、1KHz、2KHz | |
Optical Connector | FC/ PC | |
Power Supply | Rechargeable battery + Power Supply Adaptor | |
Battery operating time(hour) | 15 | |
Operating Temperature(℃) | -10~+60 | |
Storage Temperature(℃) | -25~+70 | |
Dimension(mm) | 210x115x55 | |
Weight (g) | 515 | |
MXT Recommendation | ||
MXT3108 Handheld Light Source is designed for optimal use with MXT3206 Intelligent Optical Power Meter for measuring optical loss on both single-mode and multimode fiber cable and aim at the high requirements of the users. | ||
Standard Packages
MODEL | INCLUDES |
All MXT108 Models | MXT3108 Optical Light Source, Protective Rubber Boot, Rechargeable battery, Power Supply Adaptor, Instruction Manul and Cotton swabs. Rigid hard carrying case can be optional. |
