MXT3105
MXT

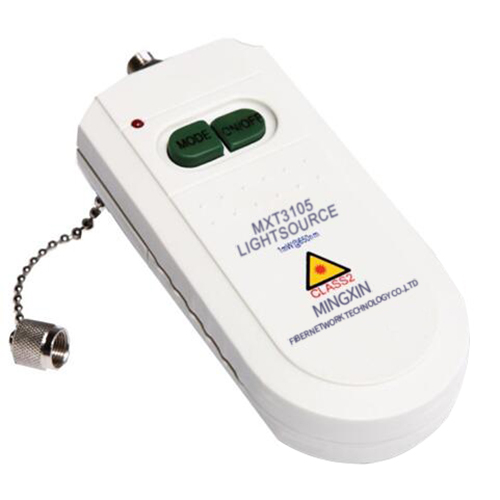

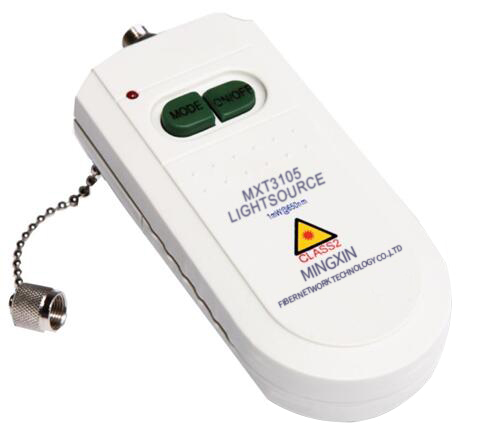

MXT3105 Visual Fault Locator is used for the measurement in single-mode or multi-mode fibers. It features a rugged design, an universal connector and an accurate measurement. The MXT3105 visual fault locator easily identifies the cutting, micro-bending of the optic fiber, passes through the jacket fiber and performs an end-to-end fiber identification. Its measurement range is up to 5km. It is an ideal tool for the examination of all kinds of patch cords and ribbon or bunched pigtails in the installation and maintenance of fiber optic networks.
Features
Detects breaks, micro-bends even through jacketed fibers
● End-to-end visual fiber identification
● Locates faults up to 5km along the fiber.
● Mechanical fusion splice optimization
● Compact size and light weight, suitable for field testing
Applications
● Maintenance in Telecom
● Maintenance CATV
● Fiber Optic Lab Testing
● Other Fiber Optic Measurements
Specifications
Type | MXT3105 |
Wavelengths(nm) | 650±10nm |
Fiber Model | SM,MM |
Output Power | 1mw |
Spectral Width(nm) | ≤5 |
Emission | CW, 2Hz can be optional |
Optical Connector | FC/ Universal 2.5mm adaptor |
Power Supply | 2pcs AA alkaline batteries |
Battery Operating Time | 30 hours |
Operating Temperature(℃) | -10~+60 |
Storage Temperature(℃) | -25~+70 |
Dimension(mm) | 100X50X25 |
Weight (g) | 50 |
Remark: Pen-type VFL can be provided!
Standard Packages
MODEL | INCLUDES |
MXT3105 | MXT3105 Visual Fault Locator, Alkaline battery, User Manual, Cotton swabs and Protective Holster. |
