Length Customed Fiber Optic ToolsHeat Shrink Sleeve Fiber Protection Sleeves

  • MXT

Detailed Product Description

Model Number:

Fiber Sheeve

Durability(dB):

<0.1Typical Change, 1000 Times

Insertion Loss:

≤0.1dB

Length:

30mm 45mm 60mm Or Customerized

Application:

FTTH FTTB FTTX Network

Operating Temperature(°C):

-40~+80


Length Customed Fiber Optic ToolsHeat Shrink Sleeve Fiber Protection Sleeves

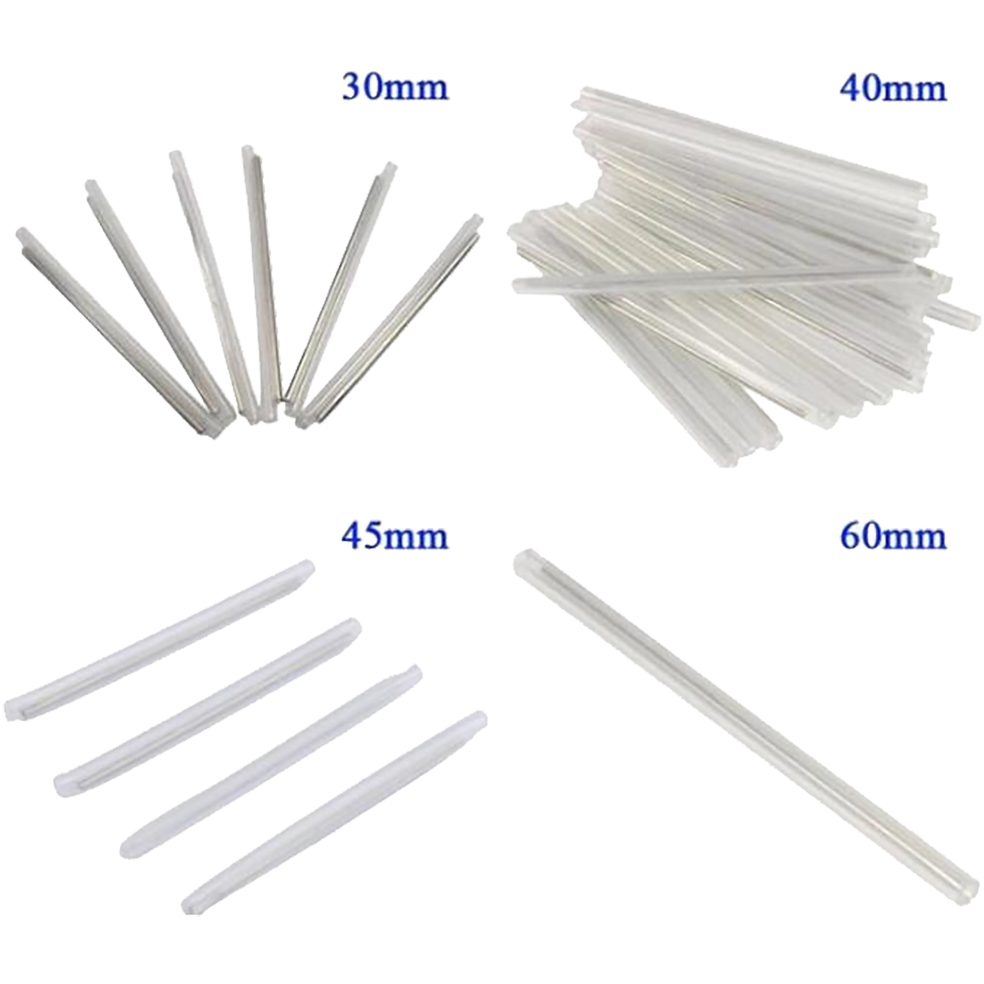

● Protection Sleeves Lenght:35mm; 40mm, 45mm , 50mm , 55mm , 60mm,
● Steel needle Diameter: 1.0mm,1.2mm,1.5mm (Standard Single Fiber)
● Custom lengths available
● Color-coded outer tubes available
● No influence on the fiber's transmission
● Splice point protection and intensity improvement
● Easy operation and reduction of the risk of manging fiber
● External tube clearly showing the status of connection
● Airproof configuration keeping the splice point's good resistance of humidity and temperature
● Operating terperature ranging from -45℃ to 100℃

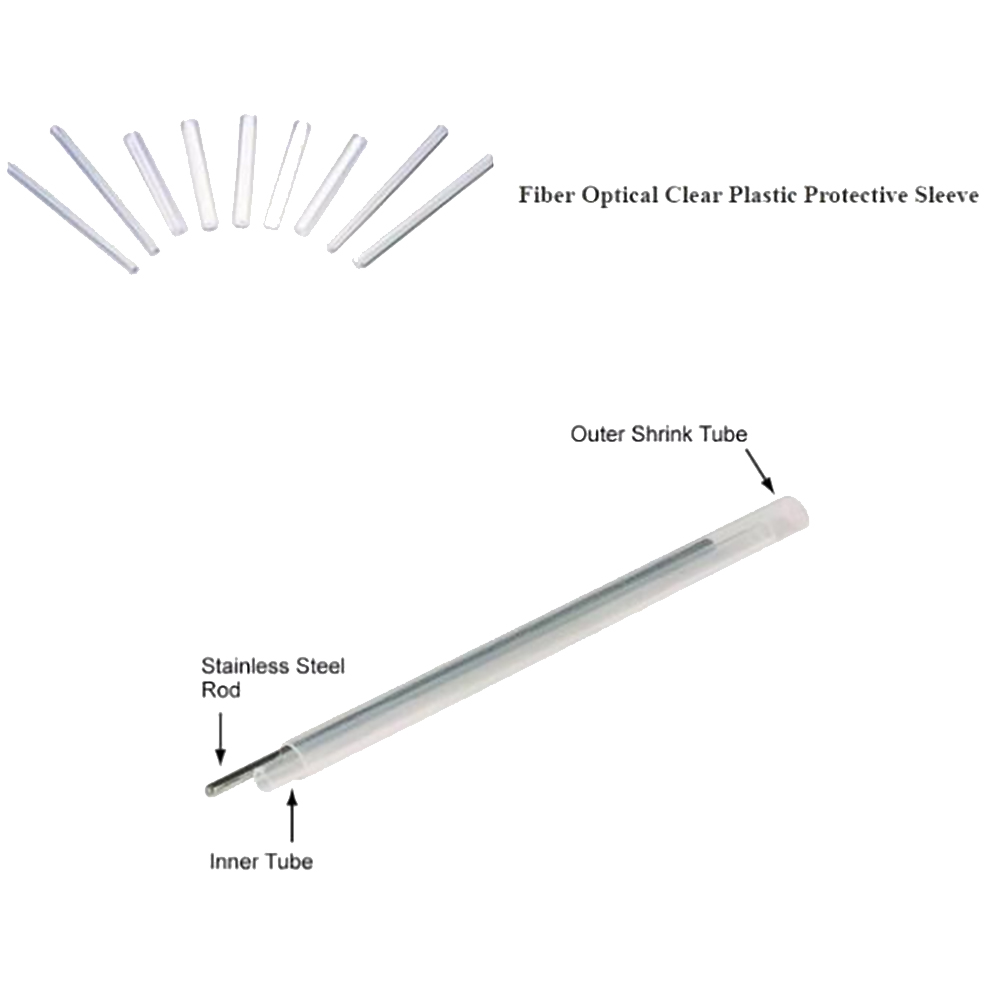

1 – Outer Tubing 2 – Strength Member 3 – Inner Tubing


Features

● Designed to restore complete environmental and mechanical integrity of coating or buffer of optical fiber after splicing.

● Sleeves are manufactured using state of the art machines and controlled manufacturing

environment in an ISO 9001 certified manufacturing facility.

● Outer tube conforms to MIL-I 23053/5 class 2 standards.

● Hot melt adhesive tube made from polyolefin Ethyl Vinyl Acetate copolymer bonds both to the fiber and heat shrinkable outer tube to effectively encapsulate fusion splice.



Fusion Splice Protection Sleeves

Model

Protection sleeves (mm)

Protection sleeves (mm)

Steel needle (mm)

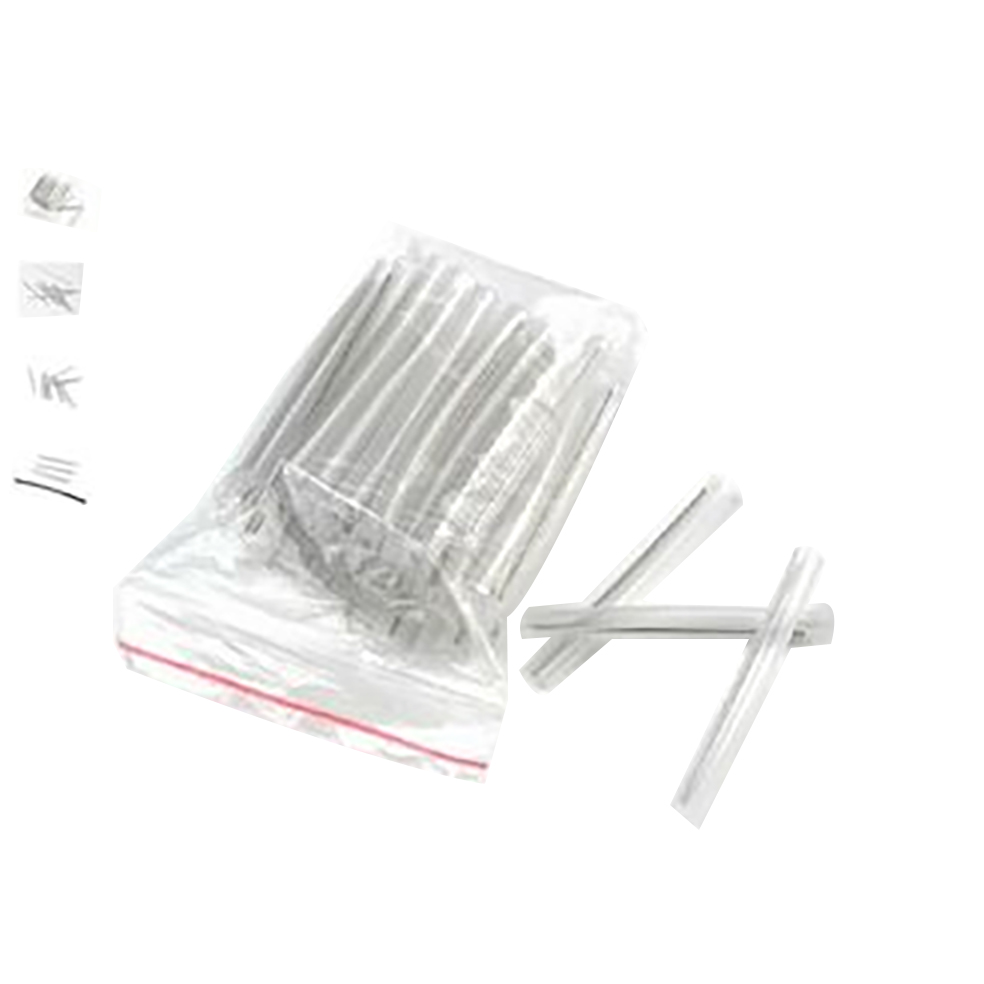

Packing

Outside diameter
(±0.1)

Wall thickness
(±0.05)

length
(±0.5)

Material

Outsider diameter
(±0.1)

Wall thickness
(±0.05)

length
(±0.5)

Material

Outsider diameter
(±0.05)

length
(±0.5)

Material


CFO-

S6015EE304

4.0

0.25

60

EVA

2.4

0.45

60

EVA

1.5

55

Stainless steel304

1000pcs/bag

CFO-

S6012EE304

3.5

0.25

60

EVA

2.0

0.35

60

EVA

1.2

55

Stainless steel304

1000pcs/bag

CFO-

S6010EE304

3.4

0.25

60

EVA

2.0

0.35

60

EVA

1.0

55

Stainless steel304

1000pcs/bag

CFO-

S5515EE304

4.0

0.25

55

EVA

2.4

0.45

55

EVA

1.5

50

Stainless steel304

1000pcs/bag

CFO-

S5512EE304

3.5

0.25

55

EVA

2.0

0.35

55

EVA

1.2

50

Stainless steel304

1000pcs/bag

CFO-

S5510EE304

3.4

0.25

55

EVA

1.4

0.35

55

EVA

1.0

50

Stainless steel304

1000pcs/bag

CFO-

S5015EE304

4.0

0.25

60

EVA

2.4

0.45

50

EVA

1.5

45

Stainless steel304

1000pcs/bag

CFO-

S5012EE304

3.5

0.25

50

EVA

2.0

0.35

50

EVA

1.2

45

Stainless steel304

1000pcs/bag

CFO-

S5010EE304

3.4

0.25

60

EVA

1.4

0.35

50

EVA

1.0

45

Stainless steel304

1000pcs/bag

CFO-

S4515EE304

4.0

0.25

45

EVA

2.4

0.45

45

EVA

1.5

40

Stainless steel304

1000pcs/bag

CFO-

S4512EE304

3.5

0.25

45

EVA

2.0

0.35

45

EVA

1.2

40

Stainless steel304

1000pcs/bag

CFO-

S4510EE304

3.4

0.25

45

EVA

1.4

0.35

45

EVA

1.0

40

Stainless steel304

1000pcs/bag

CFO-

S4015EE304

4.0

0.25

40

EVA

2.4

0.45

40

EVA

1.5

35

Stainless steel304

1000pcs/bag

CFO-

S4012EE304

3.5

0.25

40

EVA

2.0

0.35

40

EVA

1.2

35

Stainless steel304

1000pcs/bag

CFO-

S4010EE304

3.4

0.25

40

EVA

1.4

0.35

40

EVA

1.0

35

Stainless steel304

1000pcs/bag
