Features
● Low insertion loss ,high return loss
● UL standard accessories, high precise array, resistance of tensile design
● Comply with RoHS
Area of applications
● Optical communication network
● Telecom network
● Optical communication equipment,optical laser
● Ethernet network
● CATV network
Specifications
Item | Single mode | Multi mode |
Insertion loss | PC ＜0.3dB APC ＜0.2dB | PC＜0.3dB |
Return loss | PC ＞45dB APC ＞60dB | PC＞25dB |
Insert-pull test | 1000 times ＜0.3dB |
Operating temperature | -40℃ ~ +75℃ |
Ceramic ferrule spec | 125.5um concentricity deviations:＜1um | 127um concentricity deviations:＜3um |
Suitable fiber | PC/APC(9/125um) | PC(50/125um,62.5/125um) |
Ordering Information
● Supply SM,MM, Simplex & Duplex connectors..
● Supply all set connectors. and accessories(SKD)

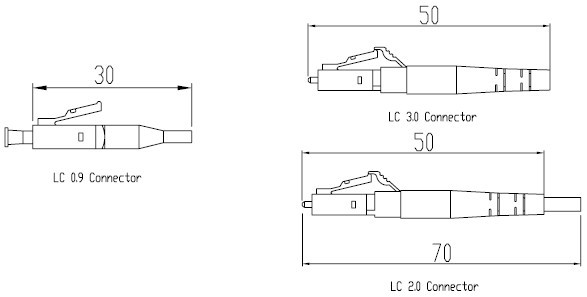

● Supply 3.0mm, 2.0mm, 0.9mm boot.
