Payment & Shipping Terms
Minimum Order Quantity: | 10pcs |
Packaging Details: | 10pcs in blister bag |
Delivery Time: | 2days for samples, 7-15days for bulk order |
Payment Terms: | L/C, T/T, Western Union, Payapl |
Supply Ability: | 10000pcs/day |
Detailed Product Description
Model Number: | SCAPC Or SCUPC | Insert Loss: | Max<=0.5dB ,Average<=0.3dB |
Return Loss: | APC >= 50dB ,UPC >=45dB | Cable Type: | 2 X3mm |
Connector Length: | 52mm | Connector Structure: | Pre -embeded Type |
Fiber Type: | SM Or MM | Connector Color: | Green |

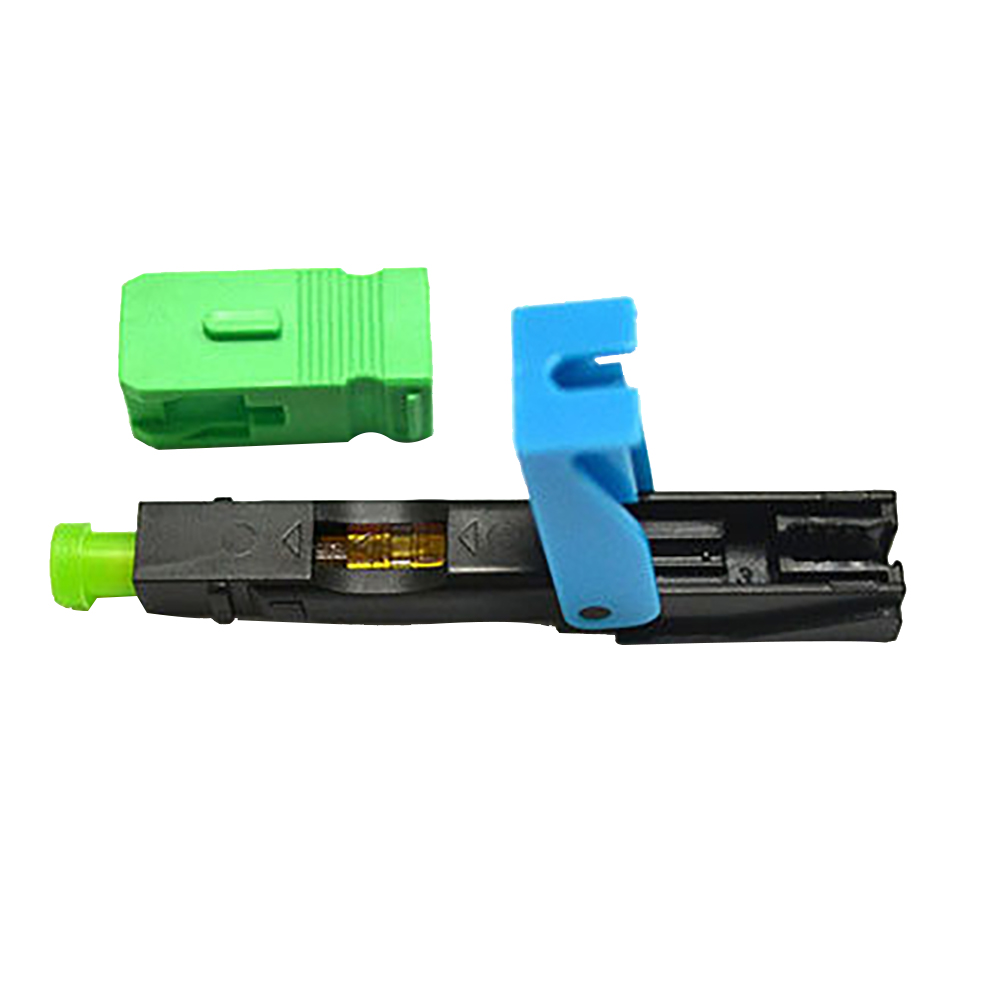

Green Fiber Optic Fast Connector 52mm Fiber Optic SC Connector For 2 X 3mm Drop Cables

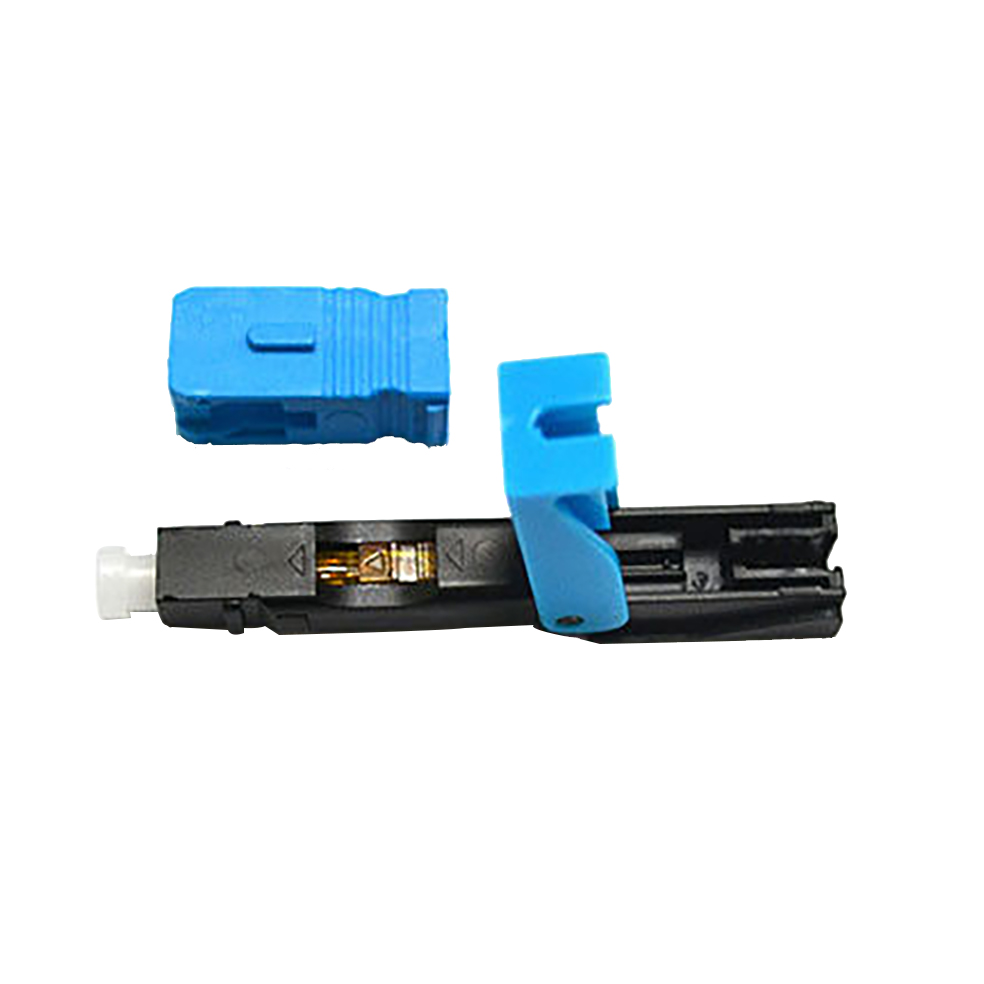

The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.

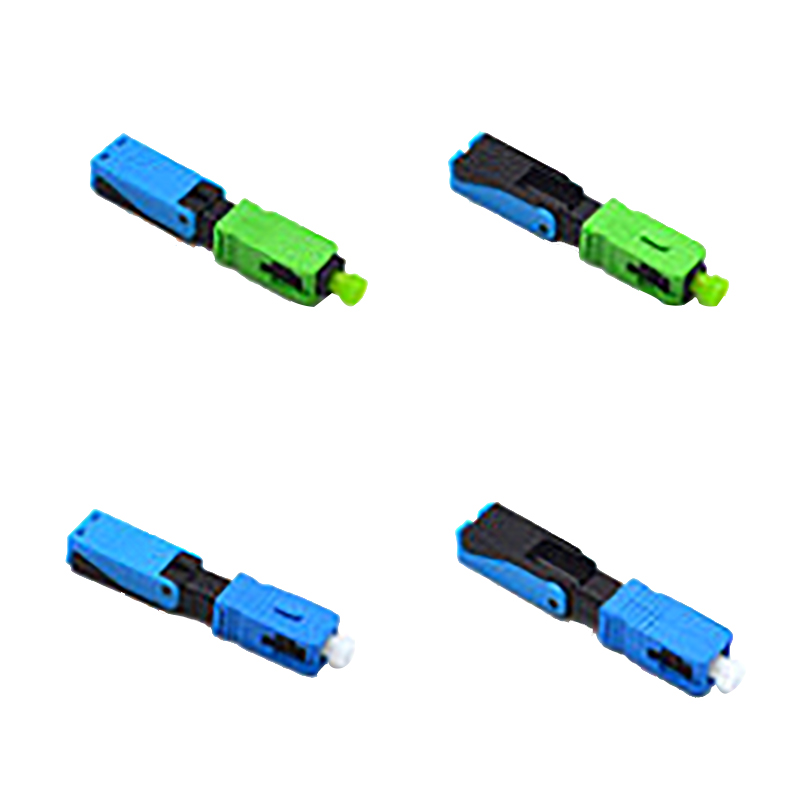

Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.
Features
● This Fast Connectors feature a pre-stubbed factory-polished ferrule that couples to the fiber being terminated. Precision mechanical alignment insures low loss with a proprietary gel.
● Connector Type: SC
● Fiber Application: Singlemode, Multimode
● Fiber Type: Simplex
● Number of Fibers: 1
● Maximum Cable Diameter (mm):2X3mm
● Connector Ferrule: Ceramic
Specifications
Item | Parameter |
Single-Mode | Multi-Mode |
Insertion Loss | Max<=0.5dB ,Average<=0.3dB |
Return Loss | APC >= 50dB ,UPC >=45dB |
Durability (1000 Mating) | 0.2dB Max. |
Operating Temperature | -40°C~+75°C |
Storage Temperature | -40°C~+85°C |
Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +/-0.5 um |
MXT Service
Hangzhou Mingxin Fiber Network Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
Hangzhou Mingxin Fiber Network Technology Co., Ltd. has passed the international quality certification: ISO 9001. We not only have top-ranking quality control departments but also establish complete and reliable quality assurance system. We carry out the system in all procedures and processes of production and management. Moreover, we adopt advanced quality control equipment and first-rate expert team, making sure best products' quality to customers in the whole world.
We sincerely invite all interested buyers to visit our company and contact us directly for further information. we will reply you as soon as possible!!!
MXT, Care your life.
