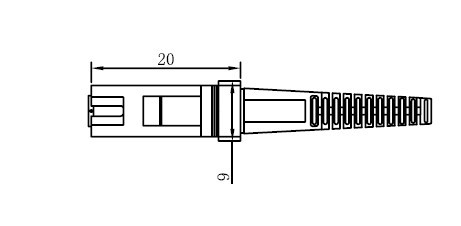

MXT
Features
● Duplex ferrule
● Strong film connector resistant of the oxide
● High precision MT ferrule
● Half size of SC ST connector
● High precision pin array
Area of applications
● Optical laser
● Ethernet network
● Telecom network
● Optical communication equipment
Specifications
Item | Single mode | Multi mode | |
Insertion loss | PC＜0.3dB | PC＜0.7dB | |
Return loss | PC＞45dB | PC＞25dB | |
Insert-pull test | 1000 (times)＜0.3dB | ||
Operating temperature | -40℃ ~ +75℃ | ||
Ceramic ferrule spec | 125.5um concentricity deviations:＜1um | 127um concentricity deviations:＜3um | |
Suitable fiber | PC (9/125um) | PC (50/125um,62.5/125um) | |
Ordering Information
● Supply male MT-RJ Pin
● Supply female MT-RJ
● Supply all set connectors and accessories(SKD)
● Supply duplex 2.0mm boot.
