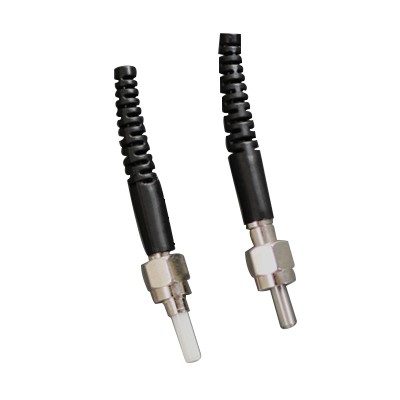

MXT
Features
● Screw type connection easy to link. properly
● Ferrule aperture can be made on customer request
● UL standard accessories, comply with RoHS
Area of applications
● Telecom network
● Industry communication
● Military communication
Specifications
Item | Multi mode |
Insertion loss | PC＜0.3dB |
Return loss | PC＞25dB |
Insert-pull test | 1000times＜0.2dB |
Operating temperature | -40℃ ~ +75℃ |
Ceramic ferrule spec | 127um concentricity deviations:＜3um |
Suitable fiber | PC (50/125um ,62.5/125um) |
Ordering Information
● Supply SM,MM, simplex connectors.
● Supply all set connectors and accessories(SKD)
● Supply 3.0mm, 2.0mm, 0.9mm boot.
