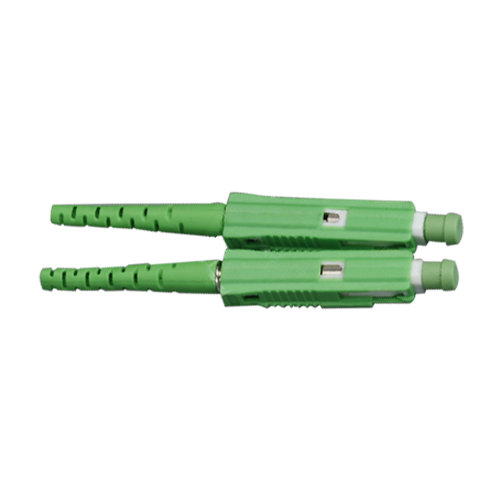

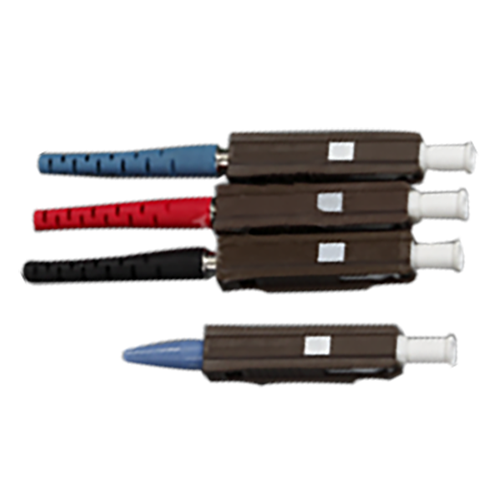

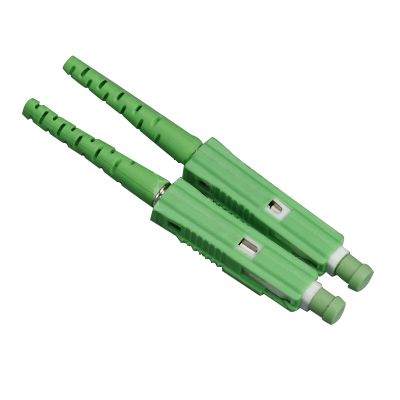

MXT
Features
● Low insertion loss ,high return loss
● Apply for NTT & JIS standard
● Resistance of tensile design
● One-piece slim design
● Comply for RoHS
Area of applications
● Optical communication equipment
● Telecom network
● CATV network
● Test equipment
● Ethernet network
Specifications
Item | Single mode | Multi mode | |
Insertion loss | PC ＜0.3dB APC ＜0.2dB | PC＜0.3dB | |
Return loss | PC ＞45dB APC ＞60dB | PC＞25dB | |
Insert-pull test | 1000 times ＜0.3dB | ||
Operating temperature | -40℃ ~ +75℃ | ||
Ceramic ferrule spec | 125.5um concentricity deviations:＜1um | 127um concentricity deviations:＜3um | |
Suitable fiber | PC/APC(9/125um) | PC(50/125um 62.5/125um) | |
Ordering Information
● Supply SM,MM, simplex and duplex connectors.
● Supply all set connectors and accessories(SKD)
● Supply 2.0mm 0.9mm boot.
