SC SM Connector

Availability:
SC SM Connector
  • MXT

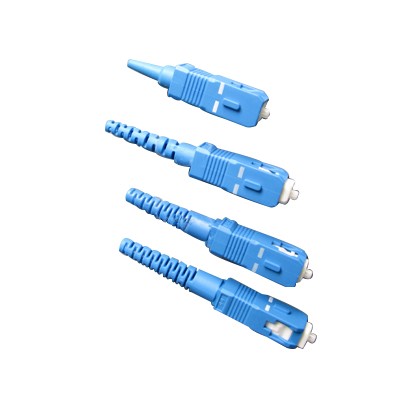

SC SM.jpg

Features

● Low insertion loss

● High return loss

● High interface performance

● Latched push-pull integrated.

● Differential colour coded

● UL standard accessories, comply with RoHS.


Area of applications

● Telecom network

● Ethernet network

● Optical laser

● Optical communication equipment

● CATV network


Specifications

Item

Single mode

Multi mode

Insertion loss

PC<0.3dB APC<0.2dB

PC<0.3dB

Return loss

PC>45dB APC>60dB

PC>25dB

Insert-pull test

1000 times <0.3dB

Operating temperature

-40℃ ~ +75℃

Ceramic ferrule spec

125.5um concentricity deviations:<1um

127um concentricity deviations:<3um

Suitable fiber

PC/APC(9/125um)

PC(50/125um,62.5/125um)


Ordering Information

● Supply multi coded colour

● Supply SM,MM,Simplex & Duplex connectors.

● Supply all set connectors. And accessories(SKD)

● Supply 3.0mm, 2.0mm, 0.9mm boot.
