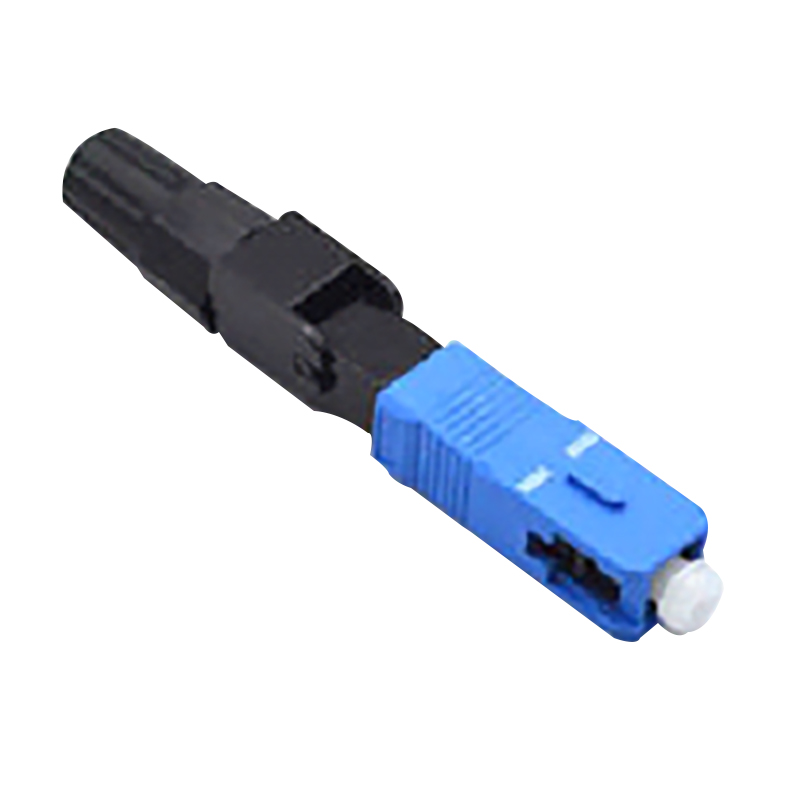

CATV Pre - Polished Fiber Connectors, Blue Field Installable Fiber Optic Connector

The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.
Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

  • MXT

Detailed Product Description

Model Number:

SCUPC

Insert Loss:

Max<=0.5dB ,Average<=0.3dB

Return Loss:

>= -40dB

Cable Type:

FTTH Drop Cable

Connector Length:

53mm,55mm,60mm

Connector Structure:

Pre -embeded Type

Fiber Type:

SM Or MM

Connector Color:

Blue


CATV Pre - Polished Fiber Connectors , Blue Field Installable Fiber Optic Connector



   The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
    Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.
    Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

CATV Pre - Polished Fiber Connectors , Blue Field Installable Fiber Optic Connector-02

Features

● Factory-installed fiber stub.
● No epoxy and polishing required, No special tools needed when installed.
● Allows up to three re-termination result.
● Easily installed, Quick and easy fiber termination in the field.
● Only 30 seconds needed to learn the process of installation and making.
● Cost effective, Warranty: One year.
● Fast connecting and repeat, No special tools needed when installed.
● Can be made on-site without splicing connectors.
● Eliminates cable excess length and pigtail splice storage.
● Can be intalled and maked repeatedly thus avoiding loss



Applications

● Optical fiber communication room
● Coss connecting cabinet
● CATV
● NET EPON
● FTTB/FTTH
● Networkcabinet


Specifications

Item

Parameter

Single-Mode

Multi-Mode

Insertion Loss

Max<=0.5dB ,Average<=0.3dB

Return Loss

>=40dB

Durability (1000 Mating)

0.2dB Max.

Operating Temperature

-40°C~+75°C

Storage Temperature

-40°C~+85°C

Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +/-0.5 um
