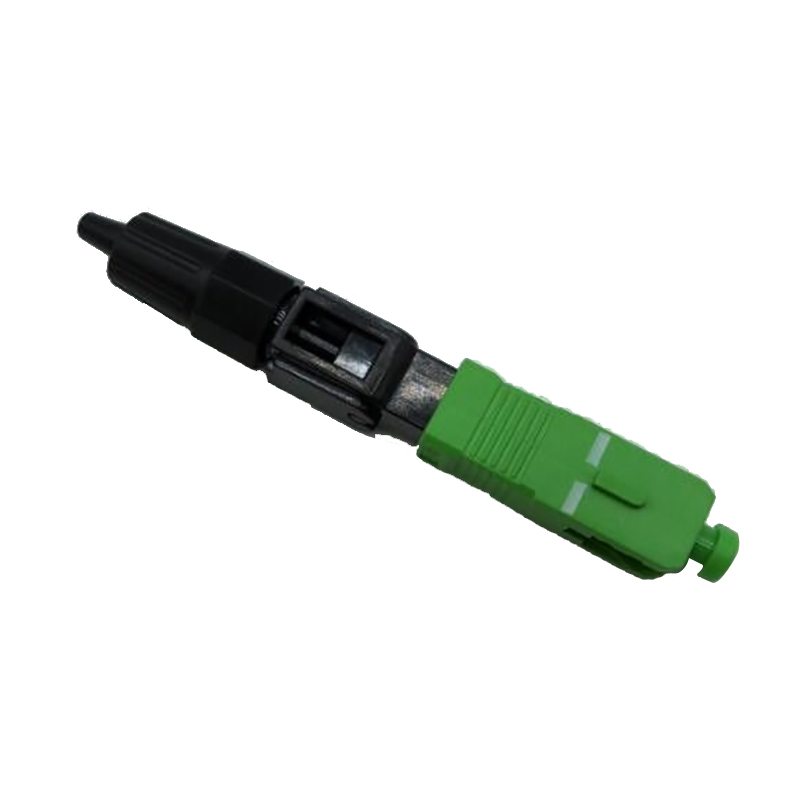

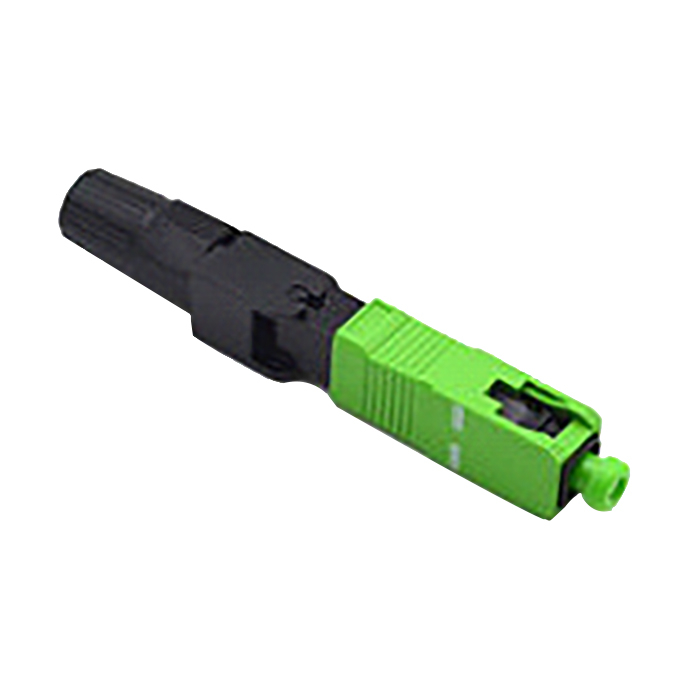

Quick Connect Fiber Optic Connectors, SC APC 60mm Field Installable Connector

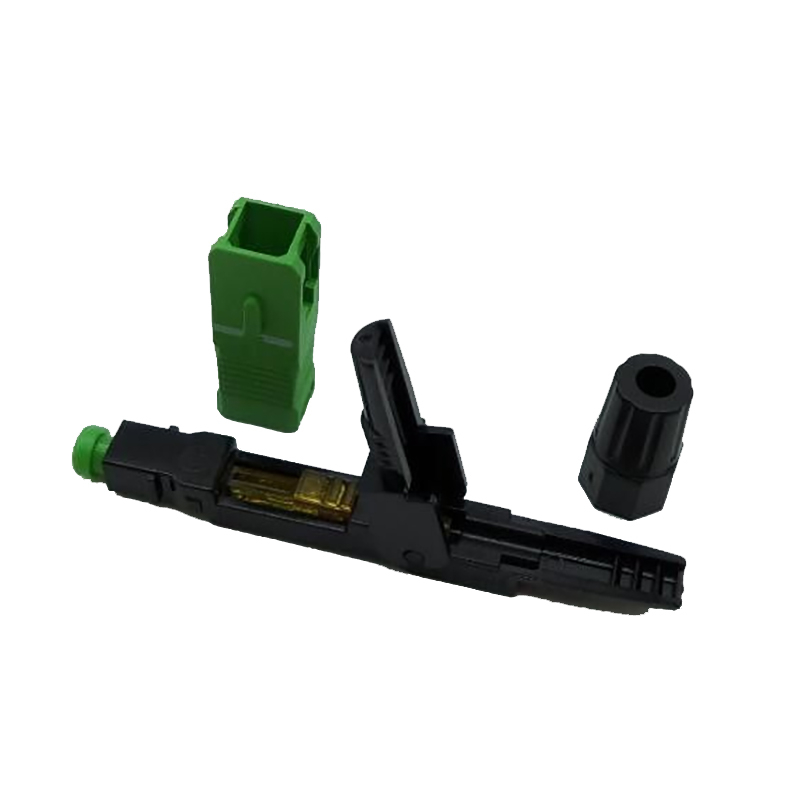

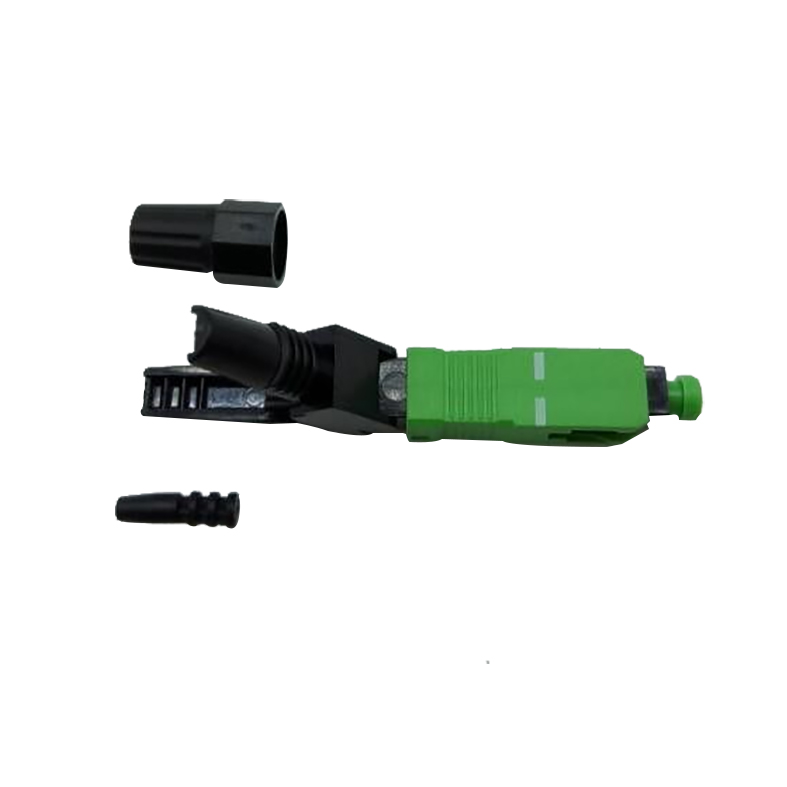

The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.
Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

  • MXT

Product Details

Place of Origin:

China


Payment & Shipping Terms

Minimum Order Quantity:

10pcs

Packaging Details:

10pcs in blister bag

Delivery Time:

2days for samples, 7-15days for bulk order

Payment Terms:

L/C, T/T, Western Union, Payapl

Supply Ability:

10000pcs/day


Detailed Product Description

Model Number:

SCAPC

Insert Loss:

Max<=0.5dB ,Average<=0.3dB

Return Loss:

>= 50dB

Cable Type:

2 X3mm .2.0mm ,0.9 Mm Cables

Connector Length:

60mm

Connector Structure:

Pre -embeded Type

Fiber Type:

SM Or MM

Connector Color:

Green


Quick Connect Fiber Optic Connectors , SC APC 60mm Field Installable Connector

   The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
   Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.
   Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.


Features

● This Fast Connectors feature a pre-stubbed factory-polished ferrule that couples to the fiber being terminated. Precision mechanical alignment insures low loss with a proprietary gel.
● Connector Type: SC
● Fiber Application: Singlemode, Multimode
● Fiber Type: Simplex
● Number of Fibers: 1
● Maximum Cable Diameter (mm):  900um, 2mm, 3mm or 2X3mm Fiber Types
● Connector Ferrule: Ceramic


Specifications

Item

Parameter

Single-Mode

Multi-Mode

Insertion Loss

Max<=0.5dB ,Average<=0.3dB

Return Loss

>=40dB

Durability (1000 Mating)

0.2dB Max.

Operating Temperature

-40°C~+75°C

Storage Temperature

-40°C~+85°C

Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +/-0.5 um
