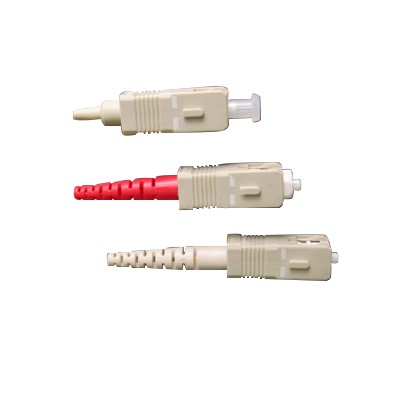

MXT
Features
● Low insertion loss
● High return loss
● High interface performance
● Latched push-pull integrated.
● Differential colour coded
● UL standard accessories, comply with RoHS.
Area of applications
● Telecom network
● Ethernet network
● Optical laser
● Optical communication equipment
● CATV network
Specifications
Item | Single mode | Multi mode | |
Insertion loss | PC＜0.3dB APC＜0.2dB | PC＜0.3dB | |
Return loss | PC＞45dB APC＞60dB | PC＞25dB | |
Insert-pull test | 1000 times ＜0.3dB | ||
Operating temperature | -40℃ ~ +75℃ | ||
Ceramic ferrule spec | 125.5um concentricity deviations:＜1um | 127um concentricity deviations:＜3um | |
Suitable fiber | PC/APC(9/125um) | PC(50/125um,62.5/125um) | |
Ordering Information
● Supply multi coded colour
● Supply SM,MM,Simplex & Duplex connectors.
● Supply all set connectors. And accessories(SKD)
● Supply 3.0mm, 2.0mm, 0.9mm boot.
