ST/PC MM.SM Connector

  • MXT

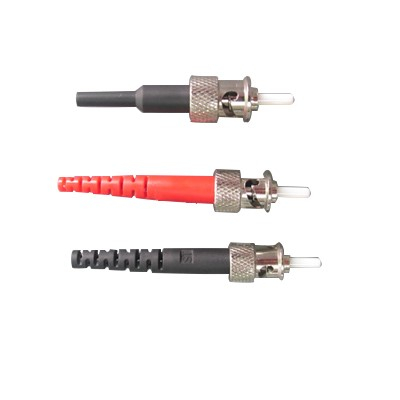

ST PC MM.SM Connector.jpg

Features

● Low insertion loss

● High corrosion resistance

● High interface performance

● High return loss

● Comply with Telcordia GR-326-CORE and RoHS standard

● Differentiated by many coded colors

● Tightly clip link


Area of Applications

● Telecom network

● Ethernet network

● Optical communication equipment


Specifications

Item

Single mode

Multi mode

Insertion loss

PC<0.3dB

PC<0.3dB

Return loss

PC>45dB

PC>25dB

Insert-pull test

1000 times<0.3dB

Operating temperature

-40℃ ~ +75℃

Ceramic ferrule spec

125.5um concentricity deviations:<1um

127um concentricity deviations:<3um

Suitable fiber

PC(9/125um)

PC(50/125um ,62.5/125um)


Ordering Information

● Supply SM,MM, Simplex connector.

● Supply all set connectors and accessories(SKD)

● Supply different coded color boot

● Supply 3.0mm, 2.0mm, 0.9mm boot.
