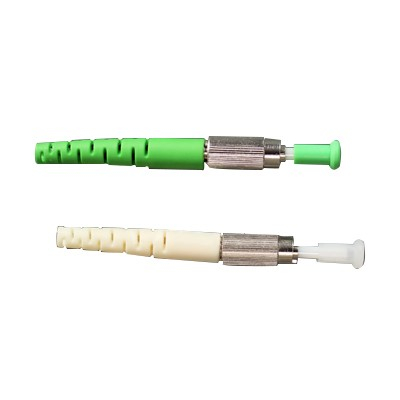

MXT
Features
● Screw type connection easy to link properly
● UL standard accessories, comply with RoHS standard.
● High corrosion resistance
● High interface performance.
Area of Applications
● Telecom network
● Optical test equipment
● Denseness connections
Specifications
Item | Single mode | Multi mode | |
Insertion loss | PC＜0.3dB APC＜0.2dB | PC＜0.3dB | |
Return loss | PC＞45dB APC＞60dB | PC＞25dB | |
Insert-pull test | (1000 times )＜0.3dB | ||
Operating temperature | -40℃ ~ +75℃ | ||
Ceramic ferrule spec | 125.5um concentricity deviations:＜1um | 127um concentricity deviations:＜3um | |
Suitable fiber | PC/APC(9/125um) | PC(50/125um,62.5/125um) | |
Ordering Information
● Supply SM,MM, simplex connectors.
● Supply all set connectors and accessories(SKD)
● Supply 3.0mm, 2.0mm, 0.9mm boot.
