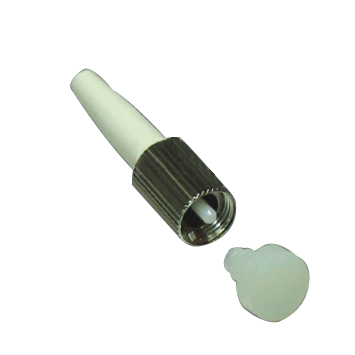

D4/PC
MXT
Features
● Low insertion loss
● High interface performance
● High return loss
● UL standard accessories comply with RoHS.
● Screw type connection, easy to link properly
Area of Applications
● Telecom network
● Optical laser
● Optical test equipment
● Optical communication equipment
Specifications
Item | Single mode | Multi mode | |
Insertion loss | PC＜0.3dB | PC＜0.3dB | |
Return loss | PC＞45dB | PC＞25dB | |
Insert-pull test | 1000times＜0.3dB | ||
Operating temperature | -40℃ ~ +75℃ | ||
Ceramic ferrule spec | 125.5um concentricity deviations:＜1um | 127um concentricity deviations:＜3um | |
Suitable fiber | PC (9/125um) | PC(50/125um ,62.5/125um) | |
Ordering Information
● Supply SM,MM, simplex connectors.
● Supply all set connectors and accessories(SKD)
● Supply 3.0mm, 2.0mm, 0.9mm boot.
