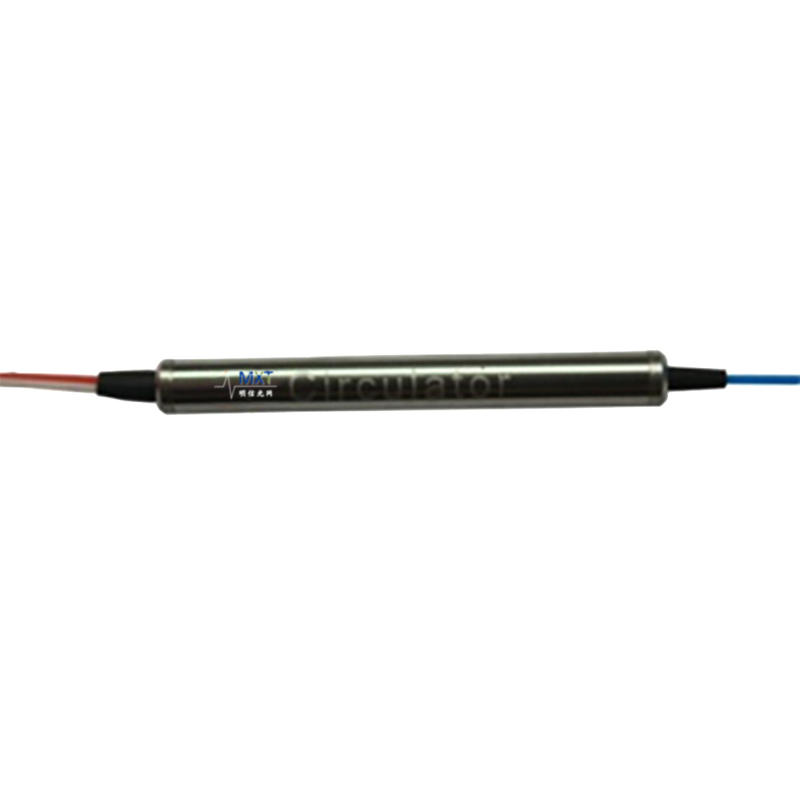

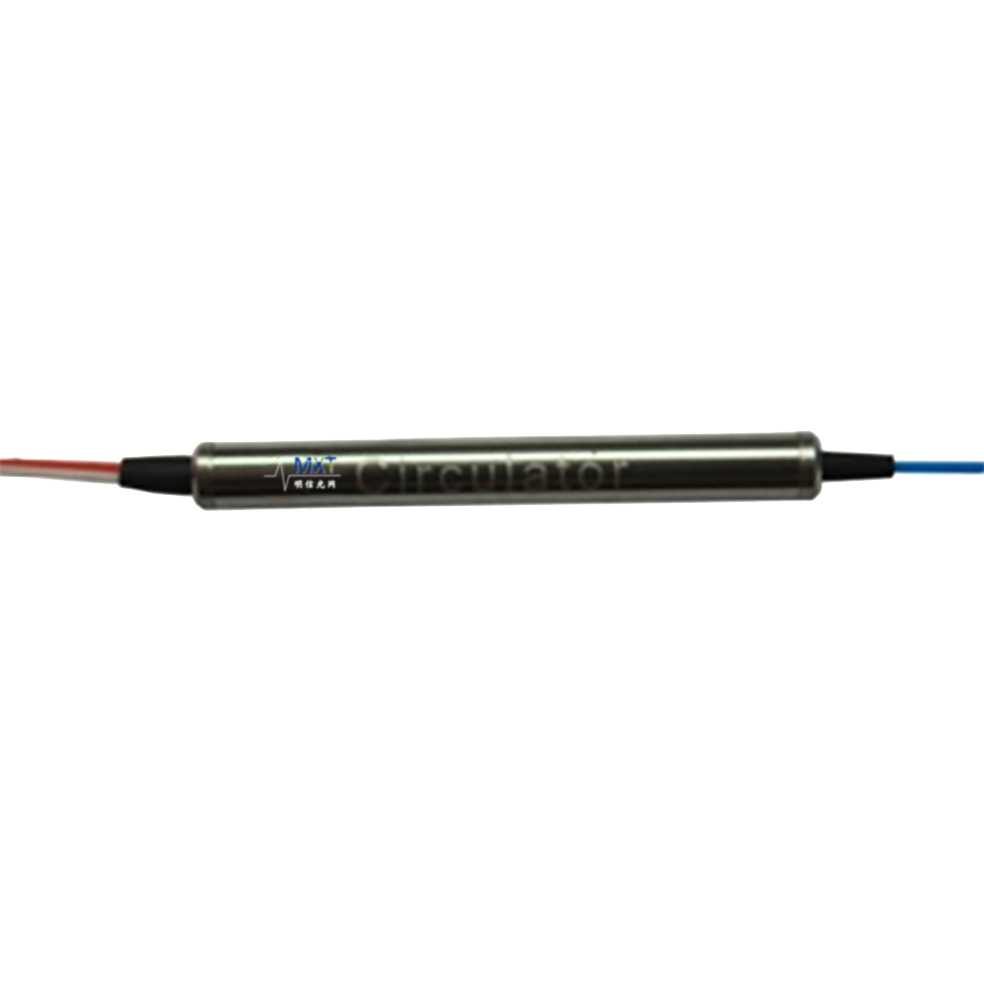

Mini Circulator

Optical circulator is a special kind of fiber optic components, with single fiber bidirectional transmission function. This function is often combined with optical fiber grating and other reflection components used in DWDM system. Dual-way communication system, the dispersion compensation, EDFA application and OTDR measurement.
Availability:
 Mini Circulator
  • MXT

Optical circulator is a special kind of fiber optic components, with single fiber bidirectional transmission function. This function is often combined with optical fiber grating and other reflection components used in DWDM system. Dual-way communication system, the dispersion compensation, EDFA application and OTDR measurement.


Feature

● High Channel Isolation

● Low Insertion Loss

● High Return Loss

● Low PDL

● High Stability and Reliability



Application

● Optical Fiber Amplifier

● CATV Optical Fiber Link

● Optical Fiber System testing

● Wavelength Add/Drop

● Dispersion Compensation

● Bi-Direction Communication


Specification

Operating Wavelength (nm)

1310±30

Configuration

Port1 to Port 2; Port2 to Port3

Grade

GRADE P

GRADE A

Insertion Loss(dB)

Typical

0.6

0.8

Maximum

0.8

1.0

Channel Max. Isolation(dB)

50

Channel Min. Isolation(dB)

40

Directivity(dB)

50

PDL(dB)

<0.15

PMD(ps)

<0.1

RL(dB)

>50

Max. Operating Power(mW)

500

Operating Temperature(℃)

0~70

Storage Temperature(℃)

-40~85

Fiber type

SMF-28e

Dimension (mm)

1.       Φ5.5xL38 ( bare fiber or 900um Loose tube

Above specification are for device without connector.


Order Information

Product

Wavelength

Grade

Pigtail Type

Fiber length

Connector

Type

3 Port Optical Circulator

1310=1280~1340nm

P=GradeP

A=GradeA

1=250um bare fiber
2=900um Loose tube

1=1m
1.5=1.5m
C=Customer Request



0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC
