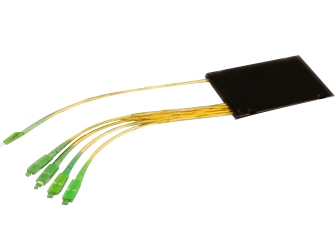

Box-packed 4 CWDM

  • MXT

Applications

● WDM System  CWDMXT

● ON Networks  PON

● ATV Links



Features

● Low Insertion Loss

● High Isolation

● Low PDL

● Compact Design

● Good channel-to-channel uniformity

● Wide Operating Wavelength: From 1260nm to 1620nm

● Wide Operating Temperature: From -40℃ to 85℃

● High Reliability and Stability


Specificatiaons

Parameters

1x2

1x4

1x8

1x16

Center Wavelength (nm)

ITU, ITU+1

Passband (nm)

ITU±6.5

Operating Wavelength (nm)

1460~1620 or 1260~1620

Channel Space (nm)

20

Fiber Type

SMF-28e or customer specified

IL (dB)  (P/A Grade)

0.7/1.0

1.4/1.7

2.0/2.5

3.5/4.0

Isolation (dB)

Adjacent Channel

30

Non-Adjacent Channel

50

Ripple (dB)

0.3

0.4

0.5

0.5

PDL (dB)

0.2

PMD (ps)

0.1

RL (dB)

45

Directivity (dB)

50

Maximum Optical Power (mw)

500

Operating Temperature (℃)

-40~85

Storage Temperature (℃)

-40~85

BOX Package (mm)

100*80*10

140*115*18

LGX Package

1U, 2U

19’’ Rack mount Package

1U



Compliance

1.lcordia GR-1209-CORE-2001

2.lcordia GR-1221-CORE-1999

3.RoHS



Competitive Advantage

MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
