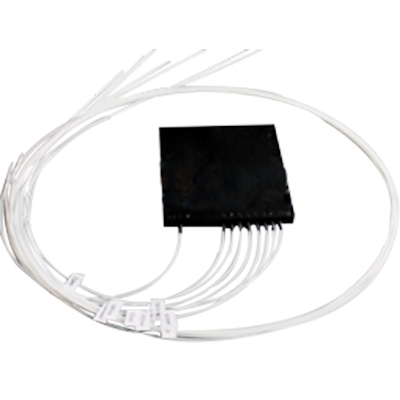

Fibrous 1*8 CWDM

  • MXT

Applications

● CWDM System  CWDMXT

● PON Networks  PON

● CATV Links


Features

● Low Insertion Loss

● High Isolation

● Low PDL

● Compact Design

● Good channel-to-channel uniformity

● Wide Operating Wavelength: From 1260nm to 1620nm

● Wide Operating Temperature: From -40℃ to 85℃

● High Reliability and Stability


Specifications

Parameters

1x2

1x4

1x8

1x16

Center Wavelength (nm)

ITU, ITU+1

Passband (nm)

ITU±6.5

Operating Wavelength (nm)

1460~1620 or 1260~1620

Channel Space (nm)

20

Fiber Type

SMF-28e or customer specified

IL (dB)  (P/A Grade)

0.7/1.0

1.4/1.7

2.0/2.5

3.5/4.0

Isolation (dB)

Adjacent Channel

30

Non-Adjacent Channel

50

Ripple (dB)

0.3

0.4

0.5

0.5

PDL (dB)

0.2

PMD (ps)

0.1

RL (dB)

45

Directivity (dB)

50

Maximum Optical Power (mw)

500

Operating Temperature (℃)

-40~85

Storage Temperature (℃)

-40~85

BOX Package (mm)

100*80*10

140*115*18

LGX Package

1U, 2U

19’’ Rack mount Package

1U


Ordering information

WDMM

xx

x

x

xx

xx

xx

x

x

x


Port

Configuration

WDM Type

Module Type

Initail

Wavelength

Package Type

Fiber Typoe

Output Fiber Lebgth

Input

Connector

Output

Connector

WDM

01=1*1

C=CWDM

1460~1620

M=Mux

27=1270nm

PS=100*80*10

9=900um loose tube

10=1.0m

0=None

0=None

M=

Module

02=1*2

Q=CWDM

1260~1620

D=Demux

31=1310nm

PL=140*115*18

2=2.0mm loose tube

15=1.5m

1=FC/UPC

1=FC/UPC


03=1*3



48=1480nm

LX=LGX box metal

3=3.0mm loose tube

20=2.0m

2=FC/APC

2=FC/APC


......



49=1490nm

19=19”1U



3=SC/UPC

3=SC/UPC


16=1*16







4=SC/APC

4=SC/APC


......







5=LC/UPC

5=LC/UPC


32=1*32







6=LC/APC

6=LC/APC





xx=

Customized

xx=

Customized

xx=

Customized

x=

Customized

x=

Customized

x=

Customized



Compliance

1.Telcordia GR-1209-CORE-2001

2.Telcordia GR-1221-CORE-1999

3.RoHS


Competitive Advantage

MXT strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
