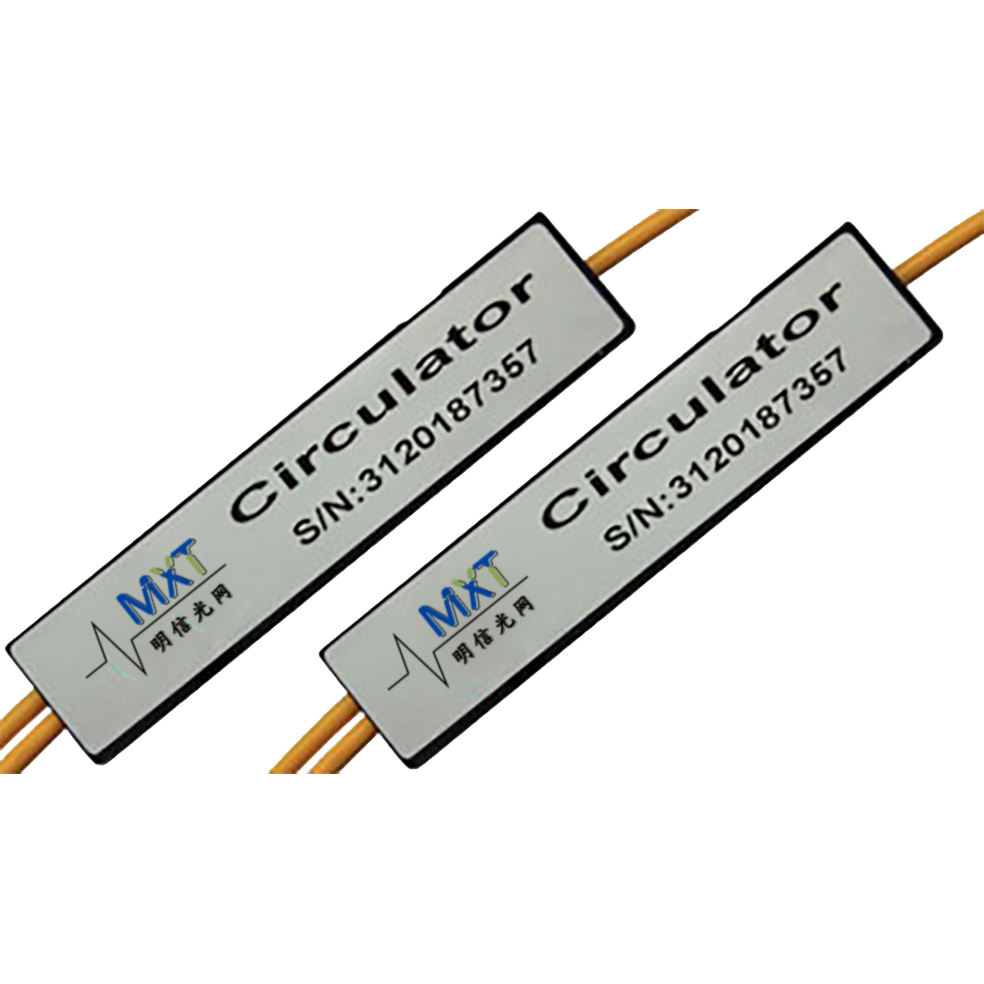

Optical Circulator is a special kind of fiber optic components, with single fiber bidirectional transmission function. This function is often combined with optical fiber grating and other reflection components used in DWDM system, Dual-way communication system, the dispersion compensation EDFA application and OTDR measurement.
Feature
● High Channel Isolation
● Low Insertion Loss
● High Return Loss
● Low PDL
● High Stability and Reliability
Application
● Optical Fiber Amplifier
● CATV Optical Fiber Link
● Optical Fiber System testing
● Wavelength Add/Drop
● Dispersion Compensation
● Bi-Direction Communication
Specification
Operating Wavelength (nm) | C&L (1525-1610) |
Configuration | Port1 to Port 2； Port2 to Port3 |
Grade | GRADE P | GRADE A |
Insertion Loss(dB) | Typical | 0.6 | 0.8 |
Maximum | 0.8 | 1.0 |
Channel Max. Isolation(dB) | 50 |
Channel Min. Isolation(dB) | 40 |
Directivity(dB) | 50 |
PDL(dB) | <0.15 |
PMD(ps) | <0.1 |
RL(dB) | >50 |
Max. Operating Power(mW) | 500 |
Operating Temperature(℃) | 0~70 |
Storage Temperature(℃) | -40~85 |
Fiber type | SMF-28e |
Dimension (mm) | 1. Φ5.5xL50 ( bare fiber or 900um Loose tube)
2. L90xW20xH9.5( 2.0mm or 3.0mm Cable) |
Above specification are for device without connector.
Order Information
Product | Wavelength | Grade | Pigtail Type | Fiber length | Connector Type |
3 Port Optical Circulator | C&L =1525-1610 nm | P=GradeP A=GradeA | 1=250um bare fiber
2=900um Loose tube
3=2.0mm Cable
4=3.0mm Cable | 1=1m
1.5=1.5m
C=Customer Request | 0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC |
