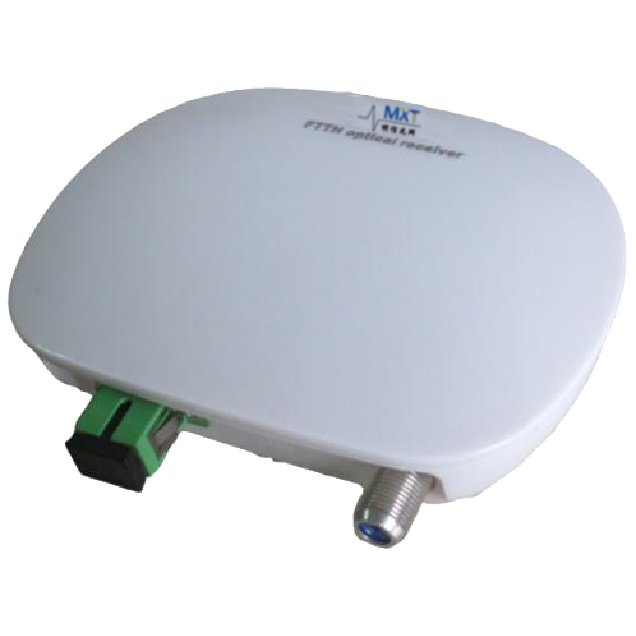

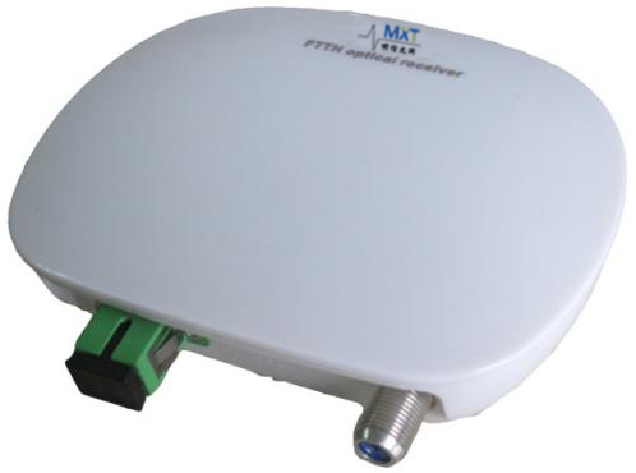

MXT-OR-860H5
MXT
Overview
MXT-OR-860H5 series optical receiver is a kind of optical receiver specially designed for FTTH application scene, which adopts low-noise MMIC amplifying circuit to ensure optical receiver has excellent distortion index and high MER value at low input power.
Features
● Three color LED to indicate input optical power.
● Optional optical controlling AGC circuit to keep the equipment output level constant.
● High response PIN photoelectric converter to make the equipment with excellent CNR index.
● DC input adopts standard 5.5×2.1 socket, and +12V input voltage.
● High-quality plastic case, looks beautiful and easy to install.
Block diagram
Specifications
Item | Unit | Parameters | |||||||||
H5 | H5M | H5P | H5MP | H5L | H5ML | H5PL | H5MPL | ||||
The optical part parameters | |||||||||||
Receiving optical power range | dBm | -12～+2 | -18～-5 | ||||||||
Suggested Receiving optical power range | dBm | -12～-2 | -16～-6 | ||||||||
Optical return loss | |||||||||||
Receiving optical wavelength | nm | 1290～1610 | 1540～1560 | 1290～1610 | 1540～1560 | ||||||
AGC Function | - | Optical control | -- | Optical control | -- | Optical control | -- | Optical control | -- | ||
AGC range | dBm | -10～0 | -- | -10～0 | -- | -15～-5 | -- | -15～-5 | -- | ||
Connector type | - | SC/APC | |||||||||
Optical Link performance | |||||||||||
CNR | dB | ≥46@-8dBm | ≥46@-10dBm | ||||||||
C/CTB | dB | ≥65@-8dBm | ≥65@-10dBm | ||||||||
C/CSO | dB | ≥60@-8dBm | ≥60@-10dBm | ||||||||
MER | dB | ≥30@-12dBm | ≥30@-15dBm | ||||||||
RF parameters | |||||||||||
Frequency range | MHz | 45～1002 | |||||||||
In-band flatness | dB | ±1.0 | |||||||||
RF output level | dBµV | ≥76dBuV＠-10dBm | ≥66dBuV＠-15dBm | ||||||||
RF output impedance | Ω | 75 | |||||||||
Output return loss | dB | ≥14 | |||||||||
General features | |||||||||||
Power supply | AC100～240 | ||||||||||
Optical power display type | - | Three color LED | |||||||||
Operation temperature | ℃ | -20～+55 | |||||||||
Storage temperature | ℃ | -40～+65 | |||||||||
Power consumption | W | 3.0（Max） | |||||||||
Dimension | mm | 105×85×25 | |||||||||
Net weight | Kg | 0.2 | |||||||||
