MXT-OR-860JBNDW
MXT
Overview
MXT-OR-860JBNDW is modern, microprocessor controlled optical receiver designed for Fiber To The Building (FTTB) optical transmission system. Thanks to microprocessor control and electronic adjustment all plug-in modules are eliminated. This provides significant operational cost reduction and simplified network maintenance.

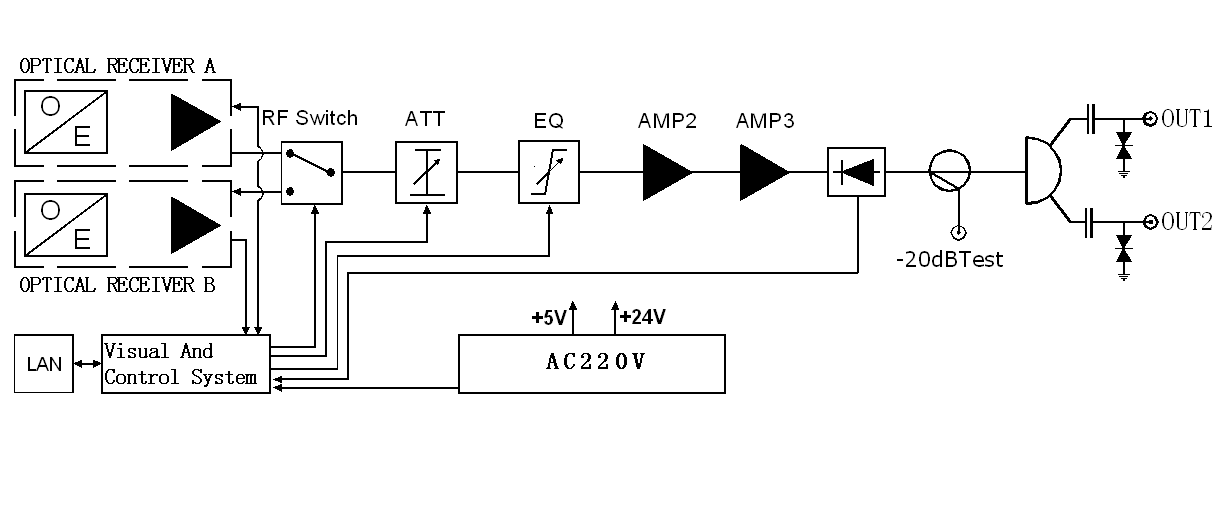

Block diagram
Specifications
Items | Units | Parameters |
RF output port | 2 | |
Receiving optical wavelength | nm | 1290～1600 |
Optical connector type | - | SC/APC |
Input optical power range | dBm | -8～+2 |
Optical control AGC input range | dBm | -6～+2 |
Optical return loss | dB | ≥50 |
In-band flatness | dB | ±0.75 |
Frequency range | MHz | 45～870 |
RF output level | dBµV | ≥110dBuV |
RF output impedance | Ω | 75 |
Attenuator and equalizer adjusting way | - | Press key adjusting numerical-control attenuation |
Attenuator adjusting range | dB | 0～15 |
Equalizer adjusting range | dB | 0～15 |
Output return loss | dB | ≥16 |
Optical link C/N | dB | ≥51 |
Optical link C/CTB | dB | ≥65 |
Optical link C/CSO | dB | ≥60 |
Power voltage | V | AC110～265 |
Network management type | - | Ⅱ sort network management (default pre-reserved） |
Power consumption | W | 18（max） |
Working temperature | ℃ | -40～+55 |
Outer dimension | mm | 230×135×98 |
Net weight | Kg | 1.25 |
