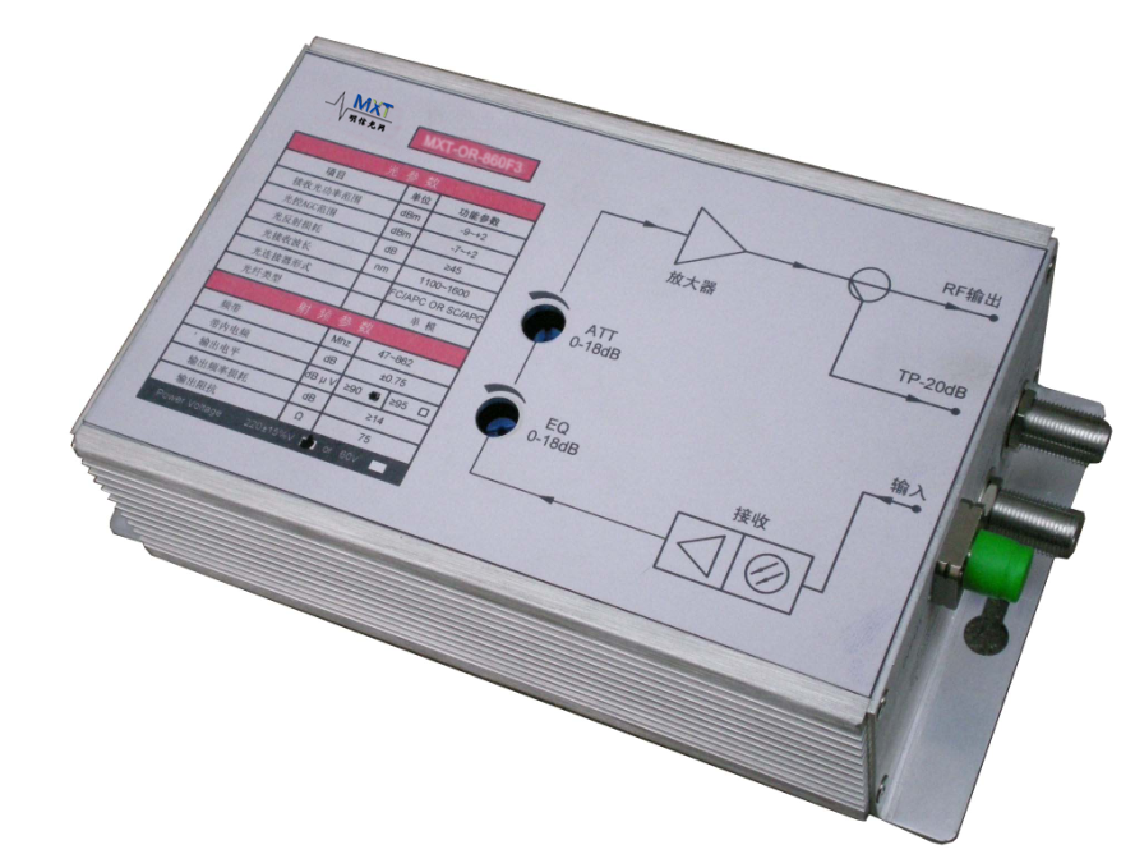

Overview
MXT-OR-860F3 FTTB Optical receiver is specially designed to meet the market’s needs. This equipment adopts GaAs MMIC amplifier component reasonably combined with NEC GaAs amplifier module, optimized circuit design and keep the output level stable while input optical power is between -7~+2dbm. It is featured with high performance index; Output adjustable attenuation and equalization makes the debugging of CATV network project very conveniently. It’s first recommended equipment to build HFC network system.
Features
● 1310nm and 1550nm daul-window receiving;
● Optical control AGC function (-7~+2dBm);
● Optical power status indicator shows the working status clearly;
● Output is equipped with adjustable attenuation and equalization, easy to test;
● Built-in High-reliable switching power supply, small temperature rise, lightning protection, High conversion efficiency, wide voltage range;
● Main output RFOUT port with AC60V feeding function, easy to operate;
● High quality aluminum case, with good performance of anti-dust, shielding, and heat-dissipating, easy to install;
Block diagram
Specifications
Items | Unit | Parameter |
RF Output ports | 2 | |
Receiving optical wave length | nm | 1290~1600 |
Optical connector type | - | FC/APC or SC/APC |
Optical control AGC | dBm | -7~+2 |
Input optical power range | dBm | -9~+2 |
Return loss | dB | ≥50 |
Flatness (peak to vally) | dB | ±0.75 |
Frequency | MHz | 47~862 |
Output level(Max) | dBµV | ≥90dBuV |
Output | Ω | 75 |
Attenuation adjusting range | dB | 0~20 |
Equalization adjusting range | dB | 0~18 |
Output return loss | dB | ≥16(47~550MHz);≥14(550~862MHz) |
C/N | dB | ≥52(-1dBm Receiving) |
C/CTB | dB | ≥65(-1dBm Receiving) |
C/CSO | dB | ≥62(-1dBm Receiving) |
Power supply | V | AC135~265 |
Power consumption | W | 7.5(max) |
Operation temperature | ℃ | -25~+65 |
Dimension | mm | 185×100×50 |
Net weight | Kg | 0.60 |
