MXT-OR-100 RFOG Burst Mode Bi-directional Optical Receiver

MXT-OR-100 series RFOG ONU make full use of existing RF and DOCSIS technology to configure optical distribution network, to provide competitive advantage and great flexibility.
MXT-OR-100 series RFOG ONU, adopts Passive Optical distribution Network (PON) to realize bi-directional, interactive RF business. In FTTH network, it serves to transmission layer of RF video, DAVIC, DOCSIS, extending the optical network to home or building without the need of adjacent HFC optical node. saving lots of RF amplifier, thus, it can improve the quality and stability of network operation.

  • MXT-OR-100
  • MXT

Overview

MXT-OR-100 series RFOG ONU make full use of existing RF and DOCSIS technology to configure optical distribution network, to provide competitive advantage and great flexibility.

MXT-OR-100 series RFOG ONU, adopts Passive Optical distribution Network (PON) to realize bi-directional, interactive RF business. In FTTH network, it serves to transmission layer of RF video, DAVIC, DOCSIS, extending the optical network to home or building without the need of adjacent HFC optical node. saving lots of RF amplifier, thus, it can improve the quality and stability of network operation.


Features

Take use of RF and DOCSIS technique configuration optical distribution network.

Support the universal HFC STB, CM and Head-end equipment.

Transparent return path channel (no limitation on protocol and modulation mode).

Optical AGC function (reach the proper RF level)

Uplink channels adopts burst mode, reduce the funneling noise.

Local feeding or remote feeding can be done through 75Ω coaxial cable

Aluminum die-casting housing, favorable for heat dispersion

Compatible DAVIC DOCSIS standard

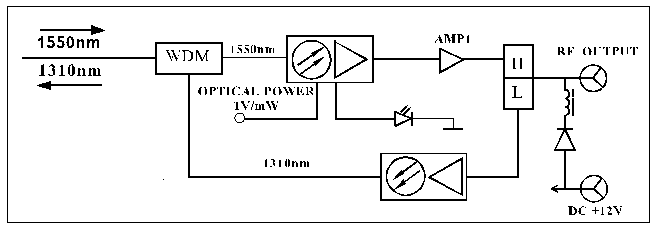

Block diagram


Specifications

Performance

unit

Min.

Typ.

Max.

Supplement

Downlink optical, electrical feature

Receiving wavelength

nm

1540


1560


Receiving optical power

dBm

-8


0


Threshold value of optical power alarm

dBm



-8


Bandwidth

MHz

(54)87~870


Flatness

dB



±1.2


Impedance

Ω


75



RF output level

dBmV

20


24

-4dBm receive

RF return loss

dB

16



87~870MHz

CNR

dB


48


-4dBm receive

CTB

dB


65


0dBm receive

CSO

dB


60


0dBm receive

Return path:optical,electrical feature

Operation wavelength

nm


1310



Laser type


FP


30 dB NPR Dynamic Range

dB

15




Optical output power

dBm

+2


+4


Bandwidth

MHz

5~(42)65


Flatness

dB



±0.75


Impedance

Ω


75



RF return loss

dB

16




RF input level

dBmV

20


40


Operation mode of laser


Burst mode


Optical output power when closed

dBm



-30


Threshold value of laser turn-on

dBmV

9


11

RF input

Threshold value of laser turn-off

dBmV

3


7

RF input

Laser turn-on time

us



1.5


Laser turn-off time

us



1.5


General feature

Optical connector


SC/APC


Optic return loss

dB

45




RF connector


F-Female


Operation temperature

-40


+60


Operating humility

%

5


95


Voltage

VDC

+10

+12

+16


Power consumption

W



5


Surge protection

KV


6


Non-condensation

Size

mm

130×86×31

(W)×(D)×(H)
