MXT-OR-860JBNDH FTTB Double Channel Optical Receiver

MXT-OR-860JBNDH is modern, microprocessor controlled optical receiver designed for Fiber To The Building (FTTB) optical transmission systems. It is featured with low input optical power, AGC function and high RF output level. This provides significant operational cost reduction and simplified network maintenance.

  • MXT-OR-860JBNDH
  • MXT

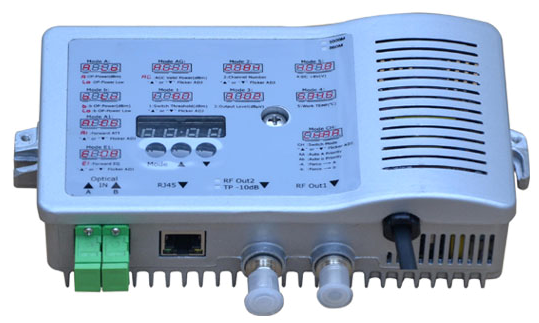

MXT-OR-860JBNDH FTTB Double Channel Optical Receiver 01.pngMXT-OR-860JBNDH FTTB Double Channel Optical Receiver 01.pngMXT-OR-860JBNDH FTTB Double Channel Optical Receiver 02.png

Overview

MXT-OR-860JBNDH is modern, microprocessor controlled optical receiver designed for Fiber To The Building (FTTB) optical transmission systems. It is featured with low input optical power, AGC function and high RF output level. This provides significant operational cost reduction and simplified network maintenance.

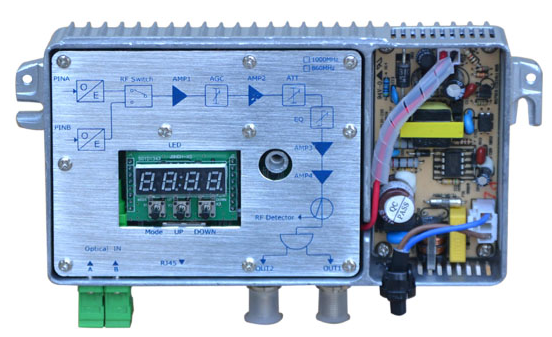

Block diagram

MXT-OR-860JBNDH 图表.png


Specifications

Items

Units

Parameters

Product model


MXT-OR-860JBNDH

Receiving optical power

dBm

-8~+2

Optical return loss

dBm

≥45

Receiving optical wavelength

nm

1290~1600

AGC function

-

Optical control AGC

AGC range

dBm

-8~+2 dBm

Optical connector type

-

FC/APC or SC/APC

C/N

dB

≥51(-1dBm receiving, 59 ch PAL format or 77 ch NTSC format)

C/CTB

dB

≥60(-1dBm receiving, 59 ch PAL format or 77 ch NTSC format)

C/CSO

dB

≥60(-1dBm receiving, 59 ch PAL format or 77 ch NTSC format)

Frequency range

MHz

45~1000

In-band flatness

dB

±0.75

Max. RF output level

dBµV

≥106dBuV

RF return impedance

Ω

75

ATT adjusting range

dB

0~15(1dB step)

EQ adjusting range

dB

0~15(1dB step)

Output return loss

dB

≥16(≤550 MHz),≥14(550~1000MHz)

RF output ports

2

Power voltage

V

AC110~265

Webmaster configuration

-

Sort-Ⅱ webmaster

Optical power display mode

-

LED numeral display

Operation temperature

-40~+55

Storage temperature

-40~+65

Related humidity

Max. 90% no condensation

Consumption

W

10(Max)

Outer dimension

mm

 195×115×55

Net weight

Kg

0.70
