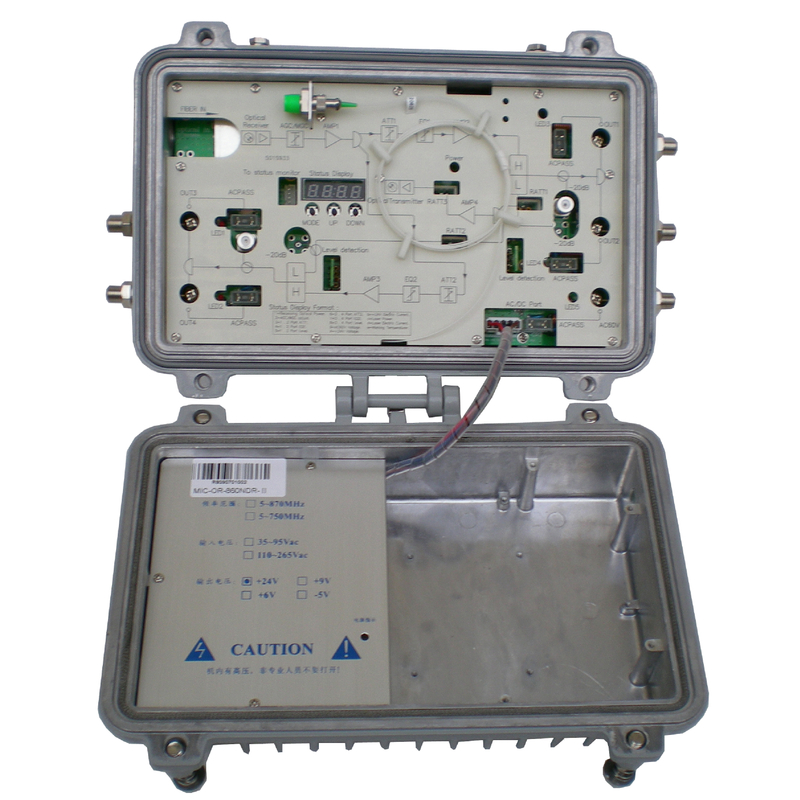

MXT-OR-860NDR-Ⅱ Outdoor 4-output Optical Receiver

MXT-OR-860NDR-Ⅱ outdoor optical receiver is a kind of new high-quality CATV network product. It adopts the reasonable combination of GaAs NEC amplifying module, AGC/MGC function. When input optical power is in the range of -6~+2dBm, output level will be stable and it is characterized by high performance index. Single-chip microcomputer controlling LED numeral pipe displays each operating parameter, which makes CATV network project very easy to debug. Digital and analogue signals can be transmitted at the same time. This is the priority choice in HFC network system construction.

  • MXT-OR-860NDR-Ⅱ
  • MXT


Overview

MXT-OR-860NDR-Ⅱ outdoor optical receiver is a kind of new high-quality CATV network product. It adopts the reasonable combination of GaAs NEC amplifying module, AGC/MGC function. When input optical power is in the range of -6~+2dBm, output level will be stable and it is characterized by high performance index. Single-chip microcomputer controlling LED numeral pipe displays each operating parameter, which makes CATV network project very easy to debug. Digital and analogue signals can be transmitted at the same time. This is the priority choice in HFC network system construction.


Features

1310nm and 1550nm double-window receiving;

Single-chip microcomputer controls AGC/MGC status and output level remotely.

Four-digit high-bright LED number tube displays the unit’s each operating parameter real-timely

(optical power, output level, internal temperature, voltage, current, etc).

RF output level, gain and slope all can be controlled and modulated remotely (equipped in SNMP) or keys are adjusted.

High-reliable switching power supply, small temperature rising, high converting efficiency and wide

voltage range.

Each port is equipped AC60V LED indicator light, easy to operate.

Network manager responder (sort I or II) component complying with SCTE HMS standard can be

chosen. Operating status and performance parameter of optical node can be controlled and monitored remotely.

Perfect surge suppression circuit, it can prevent surge stroke and light stroke efficiently.

Built-in AC60V sole power port, easy to operate.

High-quality die-casting aluminum housing, it is characterized by dust-proof, water-proof, good shield and good performance of heat-dissipating, easy to install.

Block diagram

MXT-OR-860NDR-II Block diagram.png


Specifications

From 1 Forward path

Items

Units

Parameters

Product model


MXT-OR-860NDR-Ⅱ

RF output port


4

Optical wavelength receiving

nm

1290~1600

Optical connector type

-

FC/APC or SC/APC

Input optical power range

dBm

-8~+2

Optical controlling AGC input range

dBm

-6~+2(default)/-9~+2

Optical return loss

dB

≥50

Band-in flatness

dB

±0.75

Frequency range

MHz

47~862

RF output level

dBµV

≥110 dBuV(-1dBnm receiving)/106 dBuV

RF output impedance

Ω

75

Attenuator adjusting range

dB

0~16

Equalizer adjusting range

dB

0~16

Output return loss

dB

≥16(47~862MHz)

Optical link C/N

dB

≥52(-1 dBm receiving,40 ch PAL-D)

Optical link C/CTB

dB

≥67(-1 dBm receiving,40 ch PAL-D)

Optical link C/CSO

dB

≥62(-1 dBm receiving,40 ch PAL-D)

Power supply voltage

V

AC35~90 or AC110~265

Consumption

W

28.5(Max)

Working temperature

-40~+55

Dimension

mm

320×220×130

Net weight

Kg

3.3

Form 2 Return path

Items

Units

Parameter

Optical transmitting wavelength

nm

1310±10

Output optical power

mW

1~3

Optical return loss

dB

≥45

Output optical power stability

dB

±1.5

RF input return loss

dB

≥16

Optical connector type

-

FC/APC or SC/APC

Frequency range

MHz

5~37/40/47/65

Optical link flatness

dB

±1.0

Input level

dBuV

85~90

RF output impedance

Ω

75
