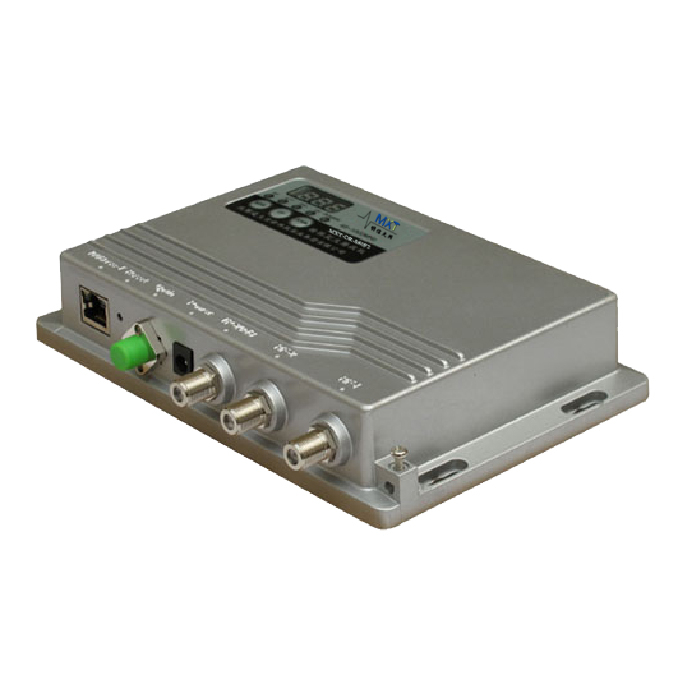

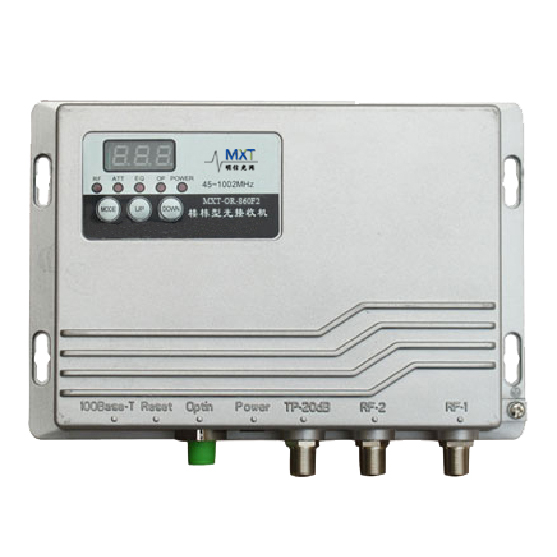

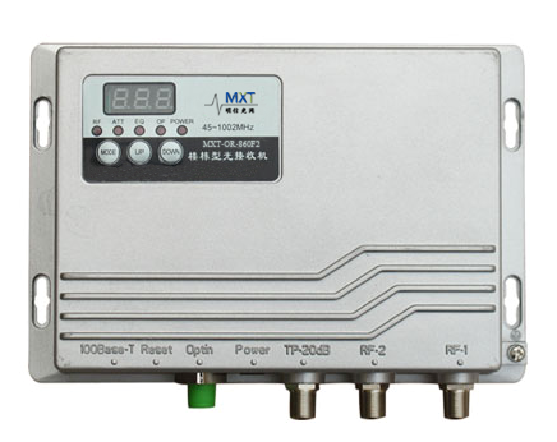

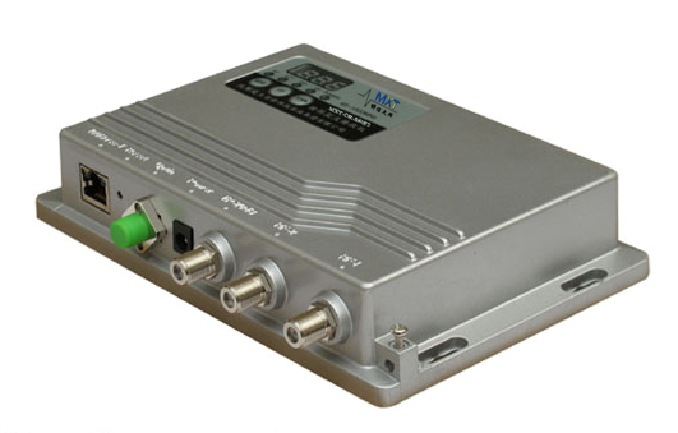

MXT-OR-860F2 FTTB Optical Receiver

MXT-OR-860F2 FTTB optical receiver is a kind of product which is designed for CATV network FTTB application. With small and compact construction, easily to install; Featured with AGC function to make output level keep constant and have higher performance index when input optical power is -8~+1dBm. It also can realize to control output level and slope of the equipment through network management system remotely and completely, to make CATV network project debugging very conveniently. At meanwhile this product can transmit digital and analogue signal. It is the main product in present FTTB network system construction.

  • MXT-OR-860F2
  • MXT

Overview

MXT-OR-860F2 FTTB optical receiver is a kind of product which is designed for CATV network FTTB application. With small and compact construction, easily to install; Featured with AGC function to make output level keep constant and have higher performance index when input optical power is -8~+1dBm. It also can realize to control output level and slope of the equipment through network management system remotely and completely, to make CATV network project debugging very conveniently. At meanwhile this product can transmit digital and analogue signal. It is the main product in present FTTB network system construction.


Features

1310nm and 1550nm dual-window receiving;

1000MHz RF output bandwidth;

LED numeral tube displays each working parameter real timely (optical power, attenuation,

equalization, output level, voltage, temperature);

Pressing key to adjust RF output level and slope;

Two ports output, with -20dBm testing port, easy to debug

Optical control AGC function, to make output level stable when input optical power is in -8~+1dBm.

Network management complies with international GB/T20030-2005 ‘HFC network device

management system standard;

Perfect surge suppression circuit to prevent surge stroke and lightning stroke efficiently;

Low consumption design, the whole machine consumption is less than 6.5W;

Good quality small aluminum shell, featured with dustproof, good shield and heat radiation, easy to

install.


Block diagram

MXT-OR-860F2 FTTB optical receiver 图表.png


Specifications

Items

Units

Parameters

Model


MXT-OR-860F2

RF output port

Piece

2

Receiving optical wavelength

nm

1290~1600

Optical connector type

-

FC/APC or SC/APC

Input optical power range

dBm

-9~+1

Optical control AGC input range

dBm

-8~+1

Optical return loss

dB

≥45

In-band flatness

dB

±0.75

RF frequency range

MHz

45~1002

RF output level

dBµV

≥100dBuV

RF output impedance

Ω

75

Attenuation adjusting range

dB

0~16

Equalization adjusting range

dB

0~16

Output return loss

dB

>16(45~550MHz); >14(>550MHz)

Optical link C/N

dB

>51@ -1dBm

Optical link C/CTB

dB

>63@ -1dBm

Optical link C/CSO

dB

>60@ -1dBm

Equivalent input noise current

PA /

≤8

Power voltage

V

AC110~240

Network management type

-

Sort-Ⅱ network management

Operation temperature

-40~+60

Operation humidity

%

20~90(non-condensation)

Consumption

W

6.5

Dimension

mm

182×125×36

Net weight

Kg

0.65
