Overview

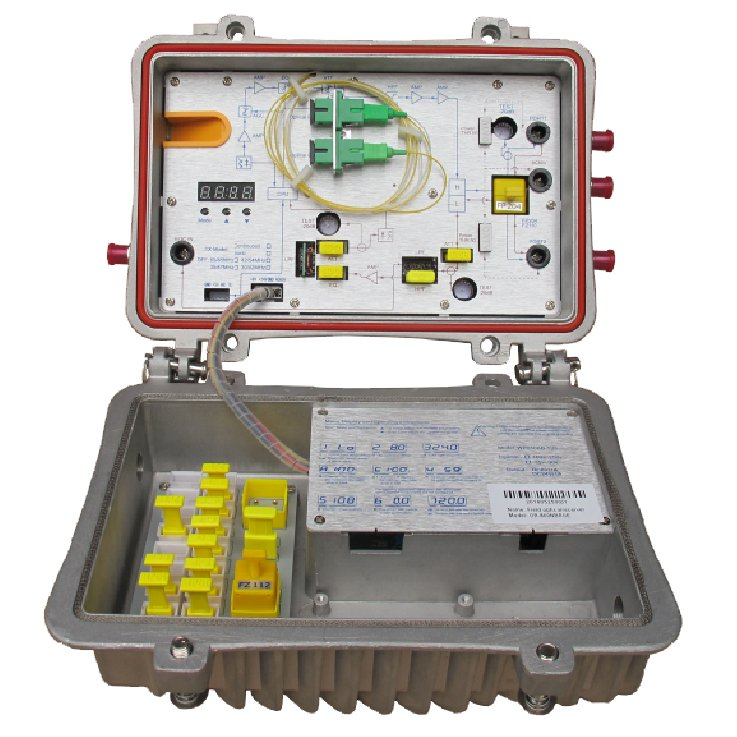

MXT-OR-1000NBR-Ⅱ outdoor optical receiver is a kind of new high-quality CATV network product. It adopts GaAs MMIC amplifying component reasonably combined with power doubled amplifying module, AGC/MGC function. When input optical power is in AGC range, output level will be stable and it is characterized by high performance index. Single-chip microcomputer controlling LED numeral pipe displays each operating parameter, which makes CATV network project very easy to debug. Digital and analogue signals can be transmitted at the same time. This is the priority choice in HFC network system construction.
Features
● 1310nm and 1550nm dual-window receiving;
● Single chip can monitor and control output level remotely;
● Four-digit high light LED digital tube displays each operation parameters real timely (optical power,
forward path RF output level, forward path RF output attenuation, output voltage);
● RF output level, gain and slope can control adjustment (configured network management) or scene
button adjustable remotely.
● High reliability switching power supply, small temperature rising, high conversion efficiency, wide
power voltage range;
● Optional standard sort II network management responder component, to monitor and control optical
node operation state and performance parameters real timely;
● Perfect surge suppression circuit, effective to prevent surge shock and lightning stroke;
● Equipped AC60V sole power port, easy to use;
● Good quality die-casting aluminum housing, dustproof, waterproof, good shield and heat dissipation,
easy to install.
Block diagram
Specifications
Table1 Forward path performance parameter
Items | Units | Parameters |
RF output port | 2 | |
Receiving optical wavelength | nm | 1290~1600 |
Optical connector type | - | FC/APC or SC/APC |
Input optical power range | dBm | -10~+2 |
Optical control AGC input range | dBm | -9~+2 |
Optical return loss | dB | ≥50 |
Flatness | dB | ≤±0.75 |
Frequency range | MHz | 54~1000 |
RF output level | dBµV | ≥110 dBuV |
RF output impedance | Ω | 75 |
Attenuation adjustment range | dB | 0~20(1dB step) |
Equalization adjustment range | dB | 0~15(1dB step) |
Output return loss | dB | ≥16(54~550 MHz)≥14(550~1000MHz) |
C/N | dB | ≥52(-1dBm receiving, 59 channels PAL-D) |
C/CTB | dB | ≥67(-1dBm receiving, 59 channels PAL-D) |
C/CSO | dB | ≥62(-1dBm receiving, 59 channels PAL-D) |
Power voltage | V | AC35~90 or AC110~265 |
Power consumption | W | 22.0(Max) |
Operation temperature | ℃ | -25~+60 |
Outer dimension | mm | 290×215 ×120 |
Net weight | Kg | 2.65 |
Table 2 Return path performance parameter
Items | Units | Parameters |
Optical transmission wavelength | nm | 1310±10 |
Output optical power | mW | 1~3 |
Optical return loss | dB | ≥45 |
Output optical power stability | dB | ±1.5 |
RF input return loss | dB | ≥16 |
Optical connector type | - | SC/APC |
Frequency range | MHz | 5~42 |
Optical link flatness | dB | ±1.0 |
Input level | dBuV | 85~90 |
RF output impedance | Ω | 75 |
