Overview

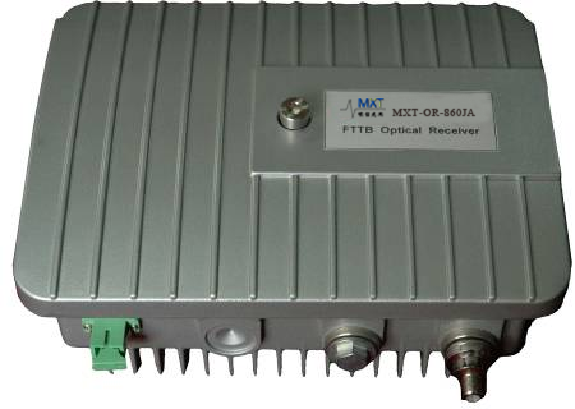

MXT-OR-860JA optical receiver is a kind of latest CATV network product. It adopts the reasonable combination of GaAs MMIC circuitry and NEC module amplifier, with AGC/MGC function, which makes output level stable and has good performance as input optical power is in the range of -8~+2dBm. Single-chip microcomputer controlling high-bright LED digital tube displays its each item of operation parameters to make CATV network project very convenient to debug. Digital signal and analogue signal can be transmitted at the same time. It is the priority in the present HFC network system construction.
Features
● 1310nm and 1550nm dual-window receiving;
● LED digital tube displays each item of operation parameters real-timely(optical power, attenuation,
equalization, etc.);
● Key can be optional and adjusts RF output level and slope;
● AGC/MGC function, it can make output level stable when input optical power is in the range of
-8~+2dBm;
● High-reliable switching power supply, small temperature rise, high converting efficiency and wide
voltage range.
● Perfect surge suppression circuitry, which can prevent surge stroke and light stroke efficiently;
● High-quality die-casting housing which is characterized by dust-proof, water-proof, good shield and
good performance of heat-dissipating, easy to install.

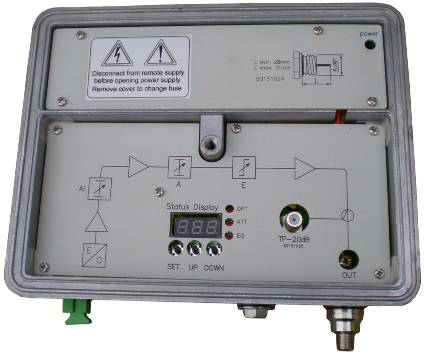

Block diagram
Specifications
Items | Units | Parameters |
RF output ports |
| 1 |
Receiving optical wavelength | nm | 1290～1600 |
Optical connector type | - | FC/APC or SC/APC |
Input optical power range | dBm | -8～+2 |
Optical control AGC input range |
| -8～0 |
Optical return loss | dB | ≥50 |
Link flatness | dB | ≤±1.0 |
Frequency range | MHz | 47～862 |
RF output level | dBµV | ≥108dBuV（0～-8dBm receiving) |
RF output impedance | Ω | 75 |
Attenuation adjusting range | dB | 0～14 |
Equalization adjusting range | dB | 0～14 |
Output return loss | dB | ≥16 |
Optical link C/N | dB | ≥51（-1dBm receiving,59 channels PAL-D） |
Optical link C/CTB | dB | ≥67（-1dBm receiving, 59 channels PAL-D） |
Optical link C/CSO | dB | ≥62（-1dBm receiving, 59 channels PAL-D） |
Power voltage | V | AC110～265 |
Power consumption | W | 15.0（max） |
Operating temperature | ℃ | -40～+55 |
Dimension | mm | 230×220×90 |
Packing dimension | mm | 250x235x115 |
Net weight | Kg | 3.0 |
