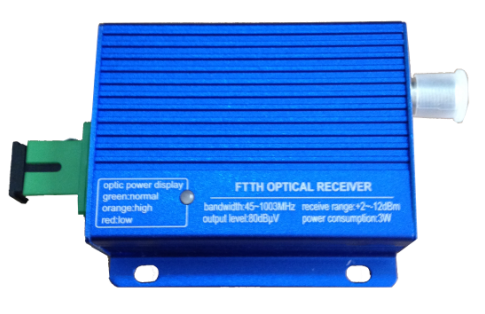

MXT-OR-860H3 FTTH Optical Receiver

MXT-OR-860H3 optical receiver is particularly designed for FTTH application circumstance, adopts MMIC amplification circuit, and equipped with AGC circuit to make sure great CTB, CSO and CNR under the optical power scope of -8~0dBm.

  • MXT-OR-860H3
  • MXT

Overview

MXT-OR-860H3 optical receiver is particularly designed for FTTH application circumstance, adopts MMIC amplification circuit, and equipped with AGC circuit to make sure great CTB, CSO and CNR under the optical power scope of -8~0dBm.


Features

Three color LED diode to display input optical power

-8~0dBm AGC to assure good performance

High response PIN optoelectronic converter to assure good CNR data for the complete machine

DC input is standard 2.0 socket,input power voltage +9~12V

High quality aluminum outer case, dust-proof, good shielding, good heat dissipation and easily

installation


Block diagram

MXT-OR-860H3 Block diagram.png


Specifications

Items

Unit

Parameter

H3

H3M

H3P

H3MP

H3L

H3ML

H3PL

H3MPL

Optical

Receiving optical power

dBm

-12~+2

-18~-5

Suggested receiving optic power

dBm

-12~-2

-16~-6

Optical return loss

dB

≥45

receiving optical wavelength

nm

1290~1610

1540~1560

1290~1610

1540~1560

AGC function

-

Optic control

--

Optic control

--

Optic control

--

Optic control

--

AGC scope

dBm

-10~0

--

-10~0

--

-15~-5

--

-15~-5

--

Optical connector

-

SC/APC

Optical link performance

CNR

dB

≥46@-8dBm

≥46@-10dBm

C/CTB

dB

≥65@-8dBm

≥65@-10dBm

C/CSO

dB

≥60@-8dBm

≥60@-10dBm

MER

dB

≥30@-12dBm

≥30@-15dBm

RF data

Frequency scope

MHz

45~1002

Flatness in band

dB

±1.0

Max. Rf output level

dBµV

≥76dBuV@-10dBm

≥66dBuV@-15dBm

RF output impedance

Ω

75

Output return loss

dB

≥14

RF output port


1

Other

Power supply


AC100~240

Optic power display

-

Three color LED

Work temperature

-20~+55

Storage temperature

-40~+65

Power consumption

W

3.0(Max)

Outer dimension

mm

103×67×24

Net weight

Kg

0.2
