Overview

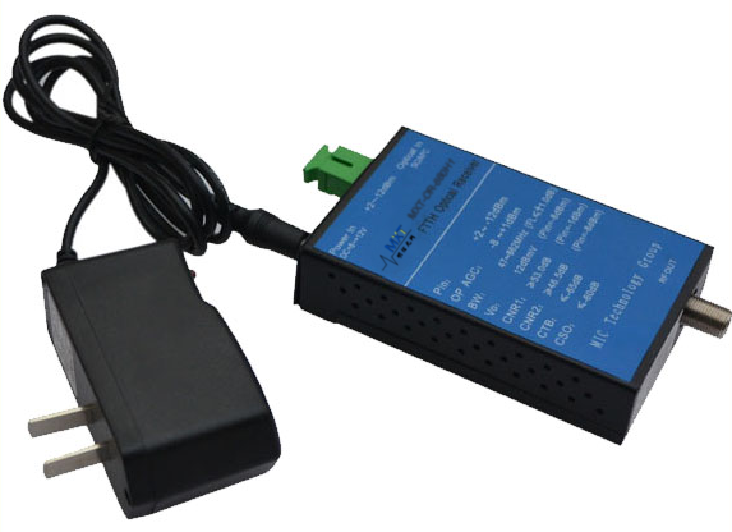

MXT-OR-860H1 type optical receiver is one high-performance receiver which is only designed for FTTH application scene. It adopts equivalent input of very low noise differential amplifying circuit, cooperate with wide range of optical control AGC circuit to make sure the receiver can have excellent CTB, CSO and Noise Ratio under wide range of input.

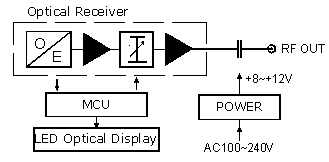

Block diagram
Specifications
Item | Unit | Parameter |
Wavelength | nm | 1290~1600 |
Optical connector | SC/APC | |
Input optical power scope | dBm | -12～+2 |
Optical control AGC scope | dBm | -8～+1 |
Optical return loss | dB | ≥45 |
Flatness | dB | ≤±0.75 |
Frequency scope | MHz | 47～862 |
Numbers of output | piece | 1 |
Nominal output level | dBuV | ≥72@-8dBm |
Output reflection consumption | dB | ≥14 |
C/N | dB | ≥46.5@-8dBm |
CTB | dB | ≥65 |
CSO | dB | ≥60 |
Power supply（adapter input） | V | AC100～240V |
Power consumption | W | 3.5（max） |
Working temperature | ℃ | -40～+55 |
Outer Dimension | mm | 130×60×25 |
Net Weight | Kg | 0.26 |
Gross Weight | Kg | 0.30 |
