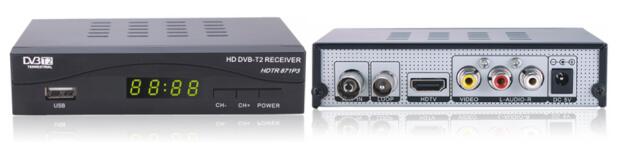

HDTR-871P3 DVB-T&T2

  • HDTR-871P3
  • MXT

HDTR-871P3 DVB-T&T2

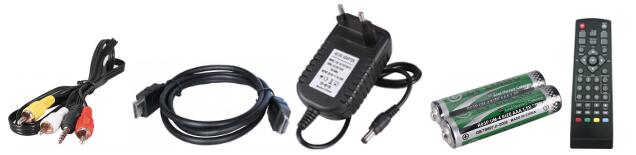

Accessories

HDTR-871P3 DVB-T&T2

Specifications

CPU and Memory

CUP

Mstart 7T01

DDR2

DDR2 512Mbit(64MByte)

Flash

32Mbit(4MByte)

DVB-T2 Standard

Fully compliant with ETSI EN 302 755 ( DVB-T2 )

Tuner

Tuner

R836

Connector Type

RF In/ANT In(IEC-Female),RF LOOP/ANT LOOP(IEC-Male)

Input Frequency

(UHF)470∽866MHz, (VHF)170∽231MHz

Bandwidth

6, 7, 8MHz

Signal Input Level

-78∽-20dBm

Input Impedance

75 Ohm

Active Antenna

5V(On/Off), Imax=100mA

Demodulation Scheme

QPSK, 16-QAM, 64-QAM, 256-QAM

FFT

1K, 2K, 4K, 8K, 16K, 32K

FECE mode

1/2, 2/3, 3/4, 3/5, 4/5, 5/6

Guard Interval

1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256

Software Function

OS

ECOS

EPG

Fully support to 7 days Electronic Program Guide(EPG)

Video Decoding

MPEG1, MPEG2, MPEG4, H264, VC-1, MOTION JPEG, MPG, MP4

Video Format

avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts

Audio  Decoding

MPEG-1/2/3/4, wma

Audio Format

mp3, wma, agg

Picture Format

JPEG, BMP, PNG

Video Resolution

480i, 480P, 576i, 576P, 720P, 1080i, 1080P

Video Aspect Ratio

4:3(LB/SCAN), 16:9(LB/FIT)

Analog Video System

PAL, NTSC, SECAM

OSD Language

nine kinds of language

LCN Sort

Support Logic Channel Number(LCN)

Teletext

VBI insertion for Teletext,CC and WSS

Time Shift

Support Time Shift

Hardware Interface

Video Output

RCA(CVBS, L/R),  HDMI Interface

USB Interface

1*USB2.0

Button

CH-, CH+,POWER

Power supply

DC5V 1A 5WMax
