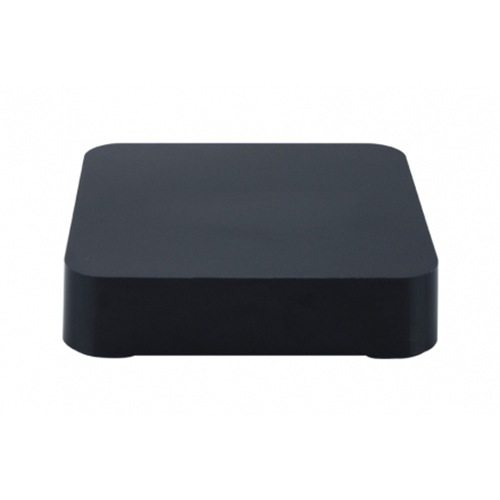

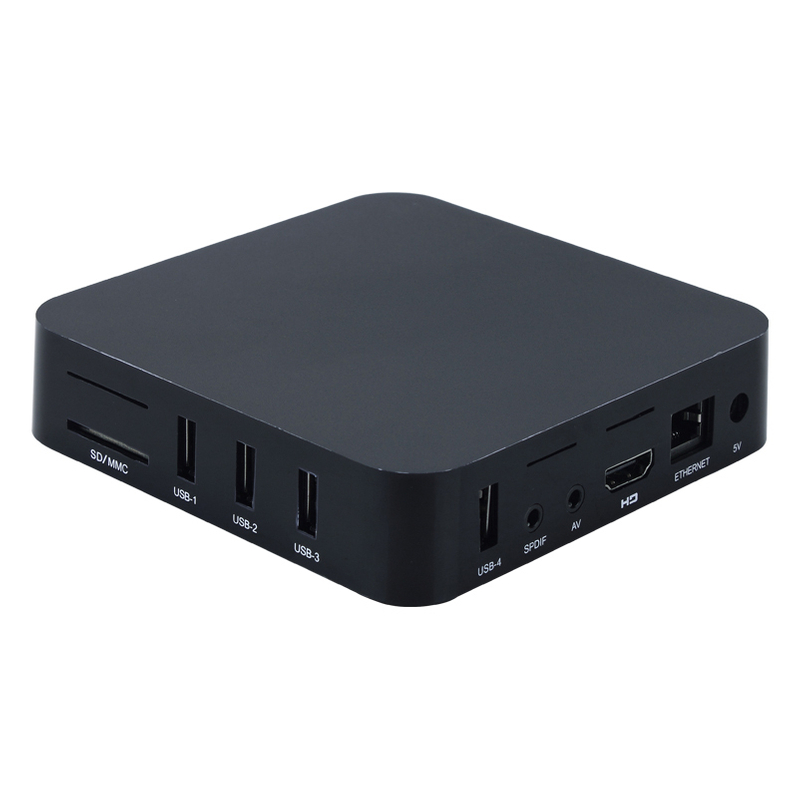

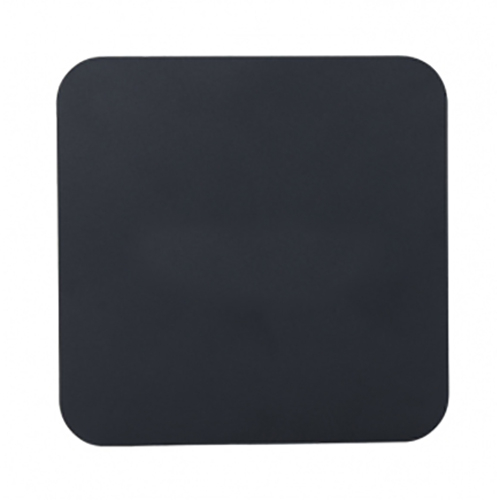

HDNB-X1 OTT BOX

  • HDNB-X1
  • MXT

HDNB-X1 OTT BOX

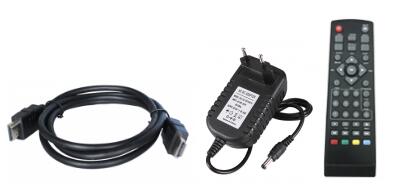

Accessories

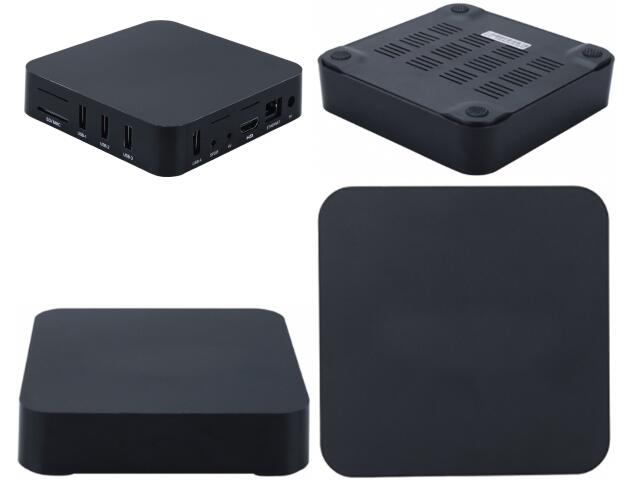

HDNB-X1 OTT BOX

Specifications

Model

HDNB-X1

CPU

Amlogic S905X

Quad core ARM Cortex-A53 CPU

up to 2.0GHz(DVFS)

GPU

Penta-core ARM Mali-450 GPU up to 750MHz+(DVFS)

2D/ 3D/ OpenGL ES1.1/2.0 and OpenVG1.1 support

Video Decoding:

VP9    Profile-2  up to 4kx2k@60fps

H.265 HEVC MP-10@L5.1 up to  4kx2k@60fps

H.264 AVC   HP      @L5.1 up to  4kx2k@30fps

750MHz+

2D/ 3D/ OpenGL ES1.1/2.0 and OpenVG1.1 support

Memory

DDR3 1G 1066MHz

Flash

8G

OS

Android 6.0.1

Video/Picture Decoder

H.265 HEVC MP-10@L5.1 up to  4kx2k@60fps

H.264 AVC HP@L4.2 up to 1080P@60fps

H.264 AVC   HP      @L5.1 up to  4kx2k@30fps

MPEG-4 ASP@L5 up to 4P@60fps (ISO-14496)

WebM up to VGA

Multiple language and multiple format sub-title video support

MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

Supports JPEG thumbnail, scaling, rotation and transition effects

Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Video/Picture Encoder

Independent JPEG and H.265 encoder with configurable performance/bit-rate

JPEG image encoding

H.264 video encoding up to 1080P@30fps

Audio Decoder

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 5.1 down-mixing

Vedio Output

CVBS*1,HDMI*1

Input Interface

USB 2.0 *4

Input Interface

SD Card Slot *1

IEEE 802.3 10/100/1000 Gigabit Ethernet RJ45 *1

Super Wi-Fi AP6210 onboard, Support Bluetooth 4.0

Power Supply

100~240V 50/60Hz IN, 5V/2.5A OUT

RCU

HD005 Remote

Size(mm)

114.8*114.8*26.4mm

Net Weight(g)

265g
