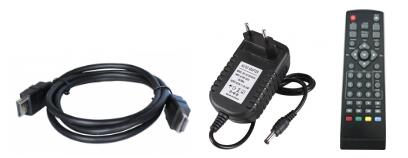

Accressories
Specifications
Model | HDNB-R2 |
CPU | Rockchip 3229 Quad-Core(1.5GHZ) |
Quad-Core(1.5GHZ) | |
1.5 GHz | |
GPU | Quad-core ARM Mali-450 GPU 3D Graphics Processing Unit |
600MHz+ | |
OpenGL ES 1.1/2.0 and OpenVG 1.1 support | |
Memory | DDR3 1G 1066MHz |
Flash | EMMC 8GB (Support 16GB) |
OS | Android 5.1(up to 6.0) |
Video/Picture Decoder | H.265 HEVC MP@L4.1 up to 4K*2K@60fps |
H.264 AVC HP@L4.2 up to 4K*2K@60fps | |
H.264 MVC up to 1080P@60fps | |
MPEG-4 ASP@L5 up to 4K*2K@60fps (ISO-14496) | |
WMV/VC-1 SP/MP/AP up to 4K*2K@60fps | |
AVS JiZhun Profile up to 4K*2K@60fps | |
MPEG-2 MP/HL up to 4K*2K@60fps (ISO-13818) | |
MPEG-1 MP/HL up to 4K*2K@60fps(ISO-11172) | |
RealVideo 8/9/10 up to 4K*2K@60fps | |
WebM up to VGA | |
Multiple language and multiple format sub-title video support | |
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | |
Supports JPEG thumbnail, scaling, rotation and transition effects | |
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | |
Video/Picture Encoder | Independent JPEG and H.265 encoder with configurable performance/bit-rate |
MKV,WMV/VC-1 SP/MP/AP,MPG,MPEG,dat,avi,mov,iso,mp4,rm,H.264,H.265,realVideo 8/9/10, VP8/9,up to 2160P | |
Audio Decoder | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 5.1 down-mixing |
Vedio Output | CVBS*1，HDMI*1 |
Input Interface | USB 2.0 *4 |
TF Card Slot *1 | |
IEEE 802.3 10/100/1000 Gigabit Ethernet RJ45 *1 | |
| Super Wi-Fi AP6210 onboard, Support Bluetooth 4.0 |
Power Supply | 100~240V 50/60Hz IN, 5V/2A OUT |
