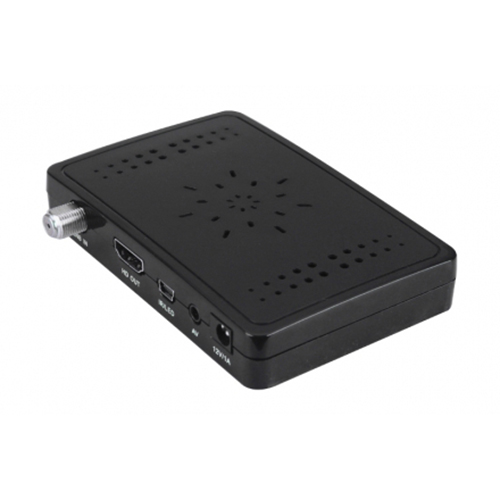

HDSR-621GF3 DVB-S2

  • HDSR-621GF3
  • MXT

Accessories

HDSR-621GF3 DVB-S2


Specifications

CPU and Memory

CPU

GX6605S


MIPS 34K@600MHz

DDR2

DDR2 512Mbit(64MByte)

Flash

32Mbit(4MByte)

Tuner

Connector Type

F-Female *1 for LNB Input

Input Frequency

950MHz~2150MHz

Signal Input Level

-65~-25dBm

Input Impedance

75 Ohm

LNB Power Out

13V/18V, Imax=500mA, overload protection

LNB Waveform Out

0/22kHz switch

Demodulation scheme

QPSK/8PSK/16APSK/32APSK: 1~60Msps

Code Rate

1/4,1/3,2/5,1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10(QPSK+).3/5,2/3,3/4,5/6,8/9,9/10(8PSK+).

3/5,2/3,3/4,5/6,8/9,9/10(10APSK+).3/4,4/5,5/6,8/9,9/10(32APSK+)

DiSEqC

1.0, 1.1, 1.2,2.2

FFT

1k,2k,4k,8k normal and extended,16knormal and extended,32k normal and extended.

FECE mode

64800 bits, 16200 bits

Guard Interval

1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Software Function

EPG

Fully support to 7 days Electronic Program Guide(EPG)

Video Decoding

MPEG1, MPEG2,MPEG4, H.264

Video Format

avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts

Audio  Decoding

MPEG-1/2/3/4, wma

Audio Format

mp3, wma, ogg

Picture Format

JPEG, BMP,PNG

Video Resolution

480i, 480P, 576i, 576P, 720P, 1080i, 1080P

Video Aspect Ratio

4:3(LB/PS), 16:9(LB/FIT)

Analog Video System

PAL, NTSC

OSD Language

11 kinds of language

LCN Sort

Support Logic Channel Number(LCN)

Teletext

VBI insertion for Teletext,CC and WSS

Time Shift

Support Time Shift

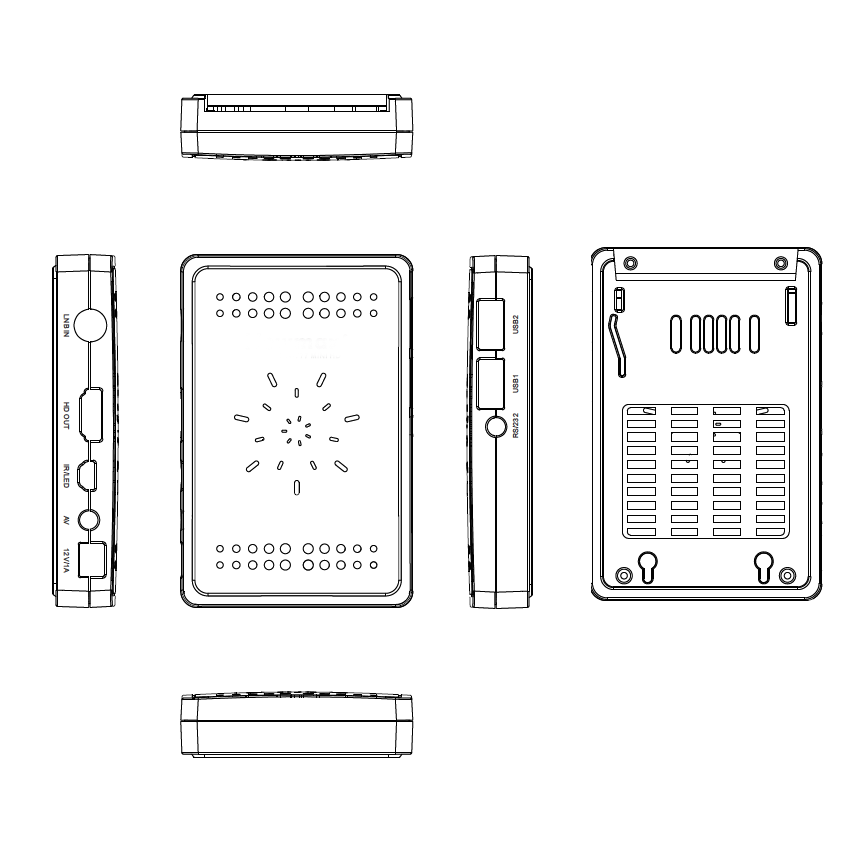

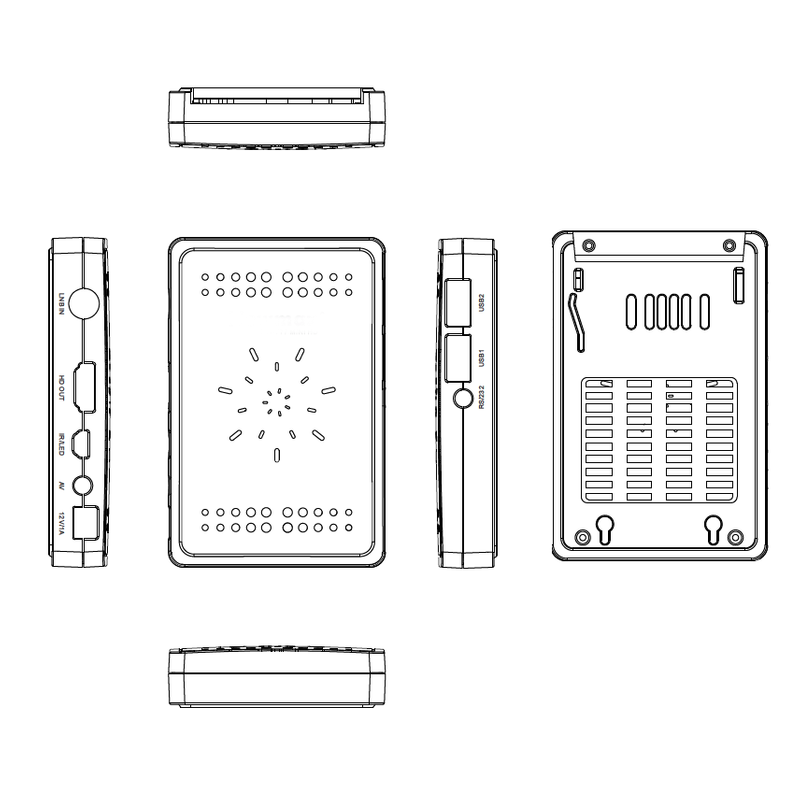

Hardwar Interface

Video Output

AV(CVBS, L/R),  HDMI 1.4

SPDIF Output

None

USB Interface

2*USB2.0

RS-232

1*RS-232

Button

None

Power supply

DC Input 12V/1A
