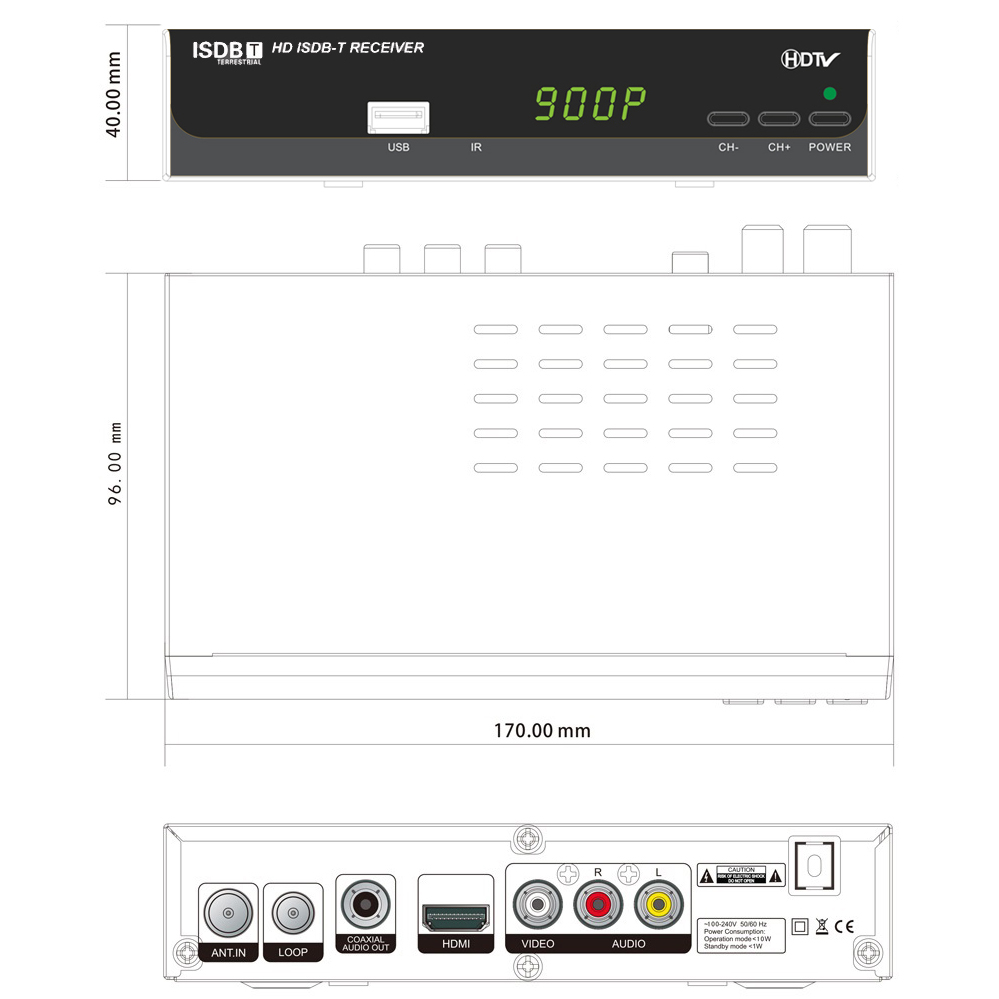

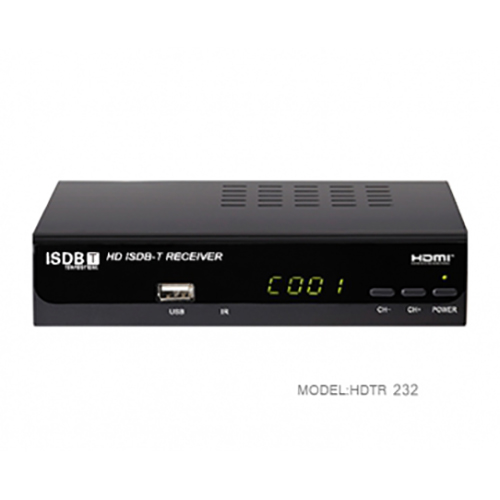

HDTR-232 ISDB-T

  • HDTR-232
  • MXT

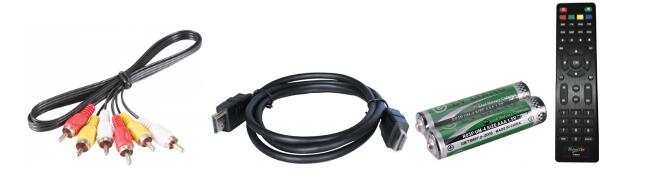

Accressories

HDTR-232 ISDB-T


Standard: ISDB-T


Features

● Fully Compliant with ISDB-T
● Support MEPG-4 AVC(H.264) MP/HP@L4.1
  Support MEPG-2 MP@HL/ML
● HE AAC5.1, HE AAC+, DD, DD+  (Dolby is optional)
● Multi Bandwidth: 6M 7M & 8M
● Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers
● Video decoding and output: 1080p/1080i/720p
● Analog Video output: PAL/NTSC
● Conversion between SD programs and HD programs
● USB2.0 supported for upgrade, PVR and time shifting
● SupportParental Control,Teletext,Subtitle
● Aspect ratio: 4:3/16:9,By Pan & Scan and Letter Box conversion
● Electronic program guide (EPG)
● Software upgrade (OAD or USB)
● 32 bits true color OSD
● Program editor
● Support Favorite Group


Specifications

CPU and Memory

CPU

MSD7805


MIPS 34K@600 MHz

DDR2

DDR2 512Mbit(64MByte)

Flash

32Mbit(4MByte)

Tuner

Connector Type

ANT In(IEC-Female),ANT LOOP(IEC-Male)

Input Frequency

(UHF)470∽866MHz, (VHF)170∽230MHz

Bandwidth

6, 7, 8MHz

Signal Input Level

-78∽-20dBm

Input Impedance

75 Ohm

Active Antenna

5V(On/Off), Imax=100mA

Demodulation Scheme

QPSK, 16-QAM, 64-QAM

1FFT

1K, 2K, 4K, 8K, 16K, 32K

FECE mode

1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval

1/4, 1/8, 1/16, 1/32

Software Function

EPG

Fully support to 7 days Electronic Program Guide(EPG)

Video Decoding

MPEG1, MPEG2, MPEG4, H264, VC-1, MOTION JPEG, MPG, MP4

Video Format

avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts

Audio  Decoding

MPEG1-L1/L2/L3, wma,AAC

Audio Format

mp3, wma, agg

Picture Format

JPEG, BMP, PNG

Video Resolution

480i, 480P, 576i, 576P, 720P, 1080i, 1080P

Video Aspect Ratio

4:3(LB/SCAN), 16:9(LB/FIT)

Analog Video System

PAL, NTSC, SECAM

OSD Language

nine kinds of language

LCN Sort

Support Logic Channel Number(LCN)

Teletext

VBI insertion for Teletext,CC and WSS

Time Shift

Support Time Shift

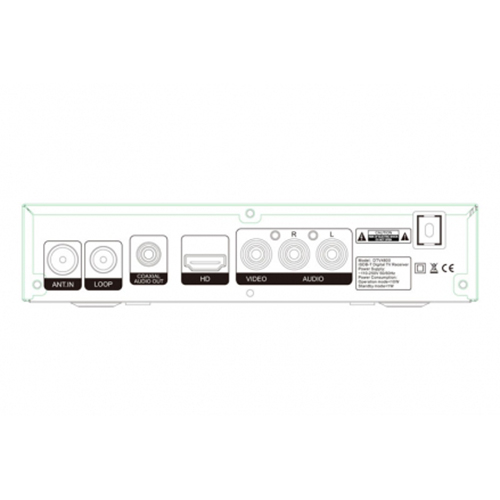

Hardware Interface

Video Output

RCA(CVBS, L/R), HDMI Interface

SPDIF Output

1*Coaxial

USB Interface

1*USB2.0

Button

POWER, CH-, CH+

Power supply

AC Input 100~240V 50Hz, 10WMax
