HDSR-650GS DVB-S2

  • HDSR-650GS
  • MXT

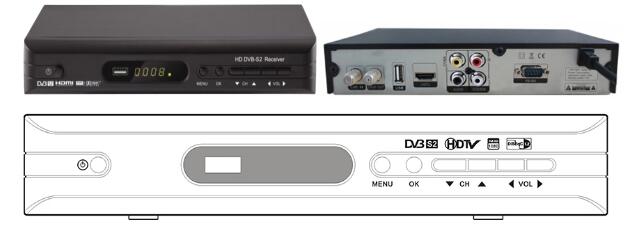

650GS

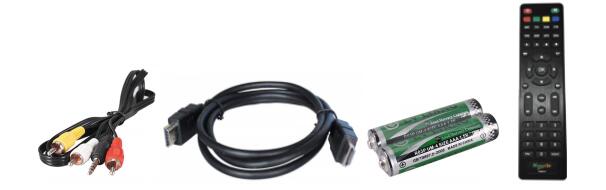

Accessories

HDSR-650GS DVB-S2

Specifications

CPU and Memory

CPU

GX6605S


MIPS 34K@600MHz

DDR2

DDR2 512Mbit(64MByte)

Flash

32Mbit(4MByte)

Tuner

Connector Type

F-Female *1 for LNB Input,F-Female* 1 for LOOP OUT

Input Frequency

950MHz~2150MHz

Signal Input Level

-65~-25dBm

Input Impedance

75 Ohm

LNB Power Out

13V/18V, Imax=500mA, overload protection

LNB Waveform Out

0/22kHz switch

Demodulation scheme

QPSK/8PSK/16APSK/32APSK: 1~60Msps

Code Rate

1/4,1/3,2/5,1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10(QPSK+).3/5,2/3,3/4,5/6,8/9,9/10(16APSK+)

.3/4,4/5,5/6,8/9,9/10(32APSK+)

DiSEqC

1.0, 1.1, 1.2,2.2

FFT

1k,2k,4k,8k normal and extended,16knormal and extended,32k normal and extended.

FECE mode

64800 bits, 16200 bits

Guard Interval

1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Software Function

EPG

Fully support to 7 days Electronic Program Guide(EPG)

Video Decoding

MPEG4, MPEG2,MPEG1, H.264

Video Format

avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts

Audio  Decoding

MPEG-1/2/3, wma

Audio Format

mp3, wma, ogg,aac

Picture Format

JPEG, BMP,PNG

Video Resolution

480i, 480P, 576i, 576P, 720P, 1080i, 1080P

Video Aspect Ratio

4:3(LB/PS), 16:9(LB/FIT)

Analog Video System

PAL, NTSC

OSD Language

9 kinds of language

LCN Sort

Support Logic Channel Number(LCN)

Teletext

VBI insertion for Teletext,CC and WSS

Time Shift

Support Time Shift

Hardwar Interface

Video Output

RCA(CVBS, L/R),  HDMI 1.4

SPDIF Output

1*Coaxial

USB Interface

1*USB2.0

RS-232

1*RS-232

Button

POWER,OK, MENU,  CH-, CH+, VOL-, VOL+

Power supply

AC Input 100~240V 50Hz, 10WMax

Scart/RF Out

Optional
