CPU and Memory | CPU | 7T01 |
| MIPS 34K@600 MHz |
DDR2 | DDR2 512Mbit(64MByte) |
Flash | 32Mbit(4MByte) |
| DVB-T2 Standard | Fully compliant with ETSI EN 302 755 ( DVB-T2 ) |
Tuner | Connector Type | RF In/ANT In(IEC-Female),RF LOOP/ANT LOOP(IEC-Male) |
Input Frequency | (UHF)470∽866MHz, (VHF)170∽230MHz |
Bandwidth | 6, 7, 8MHz |
Signal Input Level | -78∽-20dBm |
Input Impedance | 75 Ohm |
Active Antenna | 5V(On/Off), Imax=100mA |
Demodulation Scheme | QPSK, 16-QAM, 64-QAM, 256-QAM |
FFT | 1K, 2K, 4K, 8K, 16K, 32K |
FECE mode | 1/2, 2/3, 3/4, 3/5, 4/5, 5/6 |
Guard Interval | 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256 |
Software Function | OS | ECOS |
EPG | Fully support to 7 days Electronic Program Guide(EPG) |
Video Decoding | MPEG1, MPEG2, MPEG4, H264, VC-1, MOTION JPEG, MPG, MP4 |
Video Format | avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts |
Audio Decoding | MPEG1-L1/L2/L3/, wma,AAC |
Audio Format | mp3, wma, ogg |
Picture Format | JPEG, BMP, PNG |
Video Resolution | 480i, 480P, 576i, 576P, 720P, 1080i, 1080P |
Video Aspect Ratio | 4:3(LB/SCAN), 16:9(LB/FIT) |
Analog Video System | PAL, NTSC |
OSD Language | 12 kinds of language(English,French,German,Spanish,Portuguese ,Russia,Turkish,Polish,Arabic,Persian,Thai,Vietnamese) |
LCN Sort | Support Logic Channel Number(LCN) |
Teletext | VBI insertion for Teletext,CC and WSS |
Time Shift | Support Time Shift |

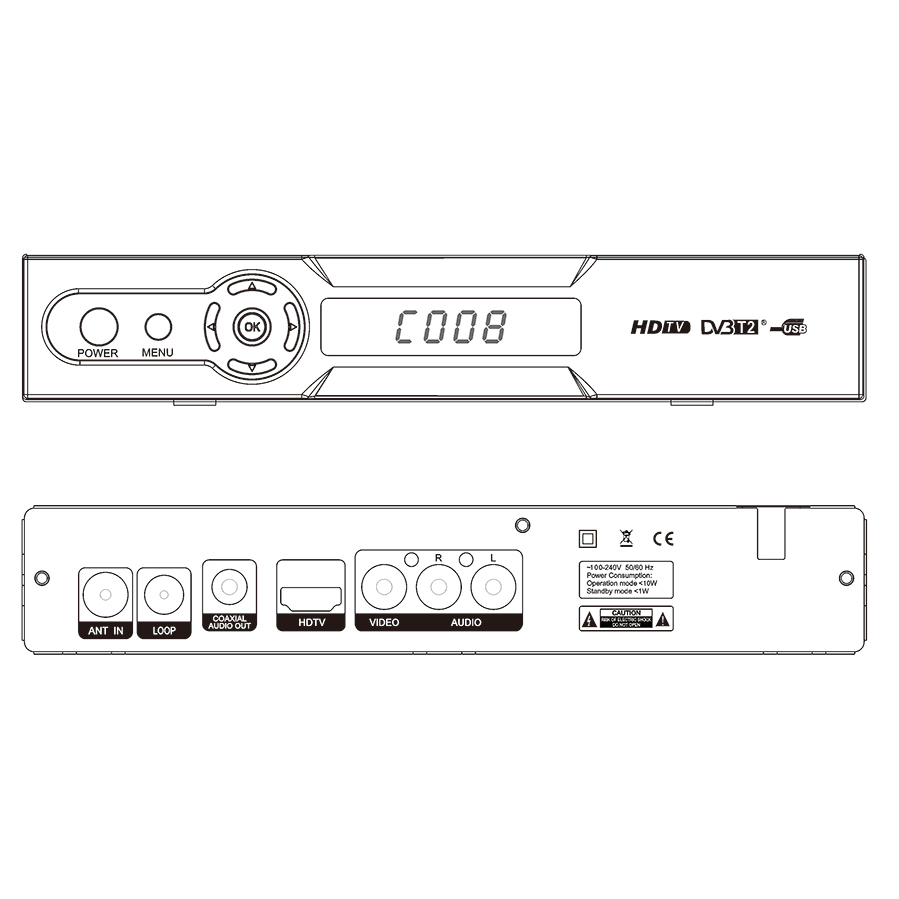

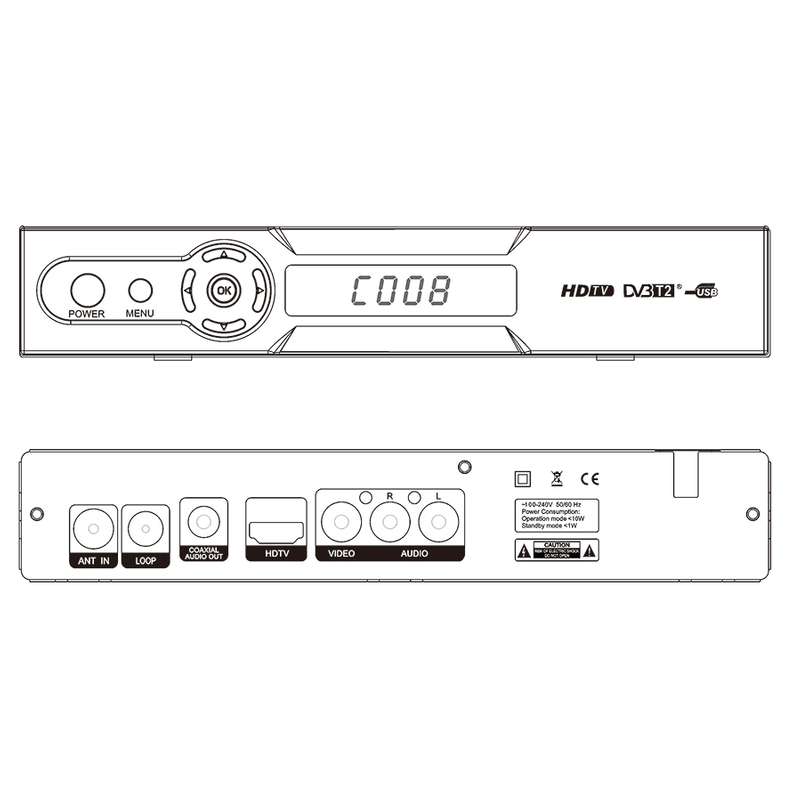

Hardware Interface | Video Output | RCA(CVBS, L/R), HDMI Interface |
SPDIF Output | 1*Coaxial |
USB Interface | 1*USB2.0 |
Button | POWER, CH-, CH+,MENU,OK,VOL+,VOL- |
Power supply | AC Input 100~240V 50Hz, 10WMax |
