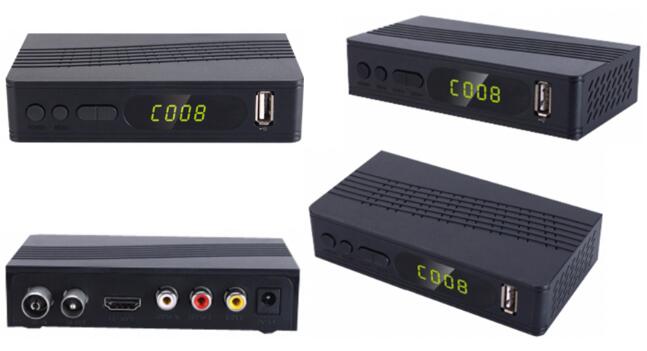

HDTR-871F2 DVB-T&T2

  • HDTR-871F2
  • MXT

HDTR-871F2 DVB-T&T2

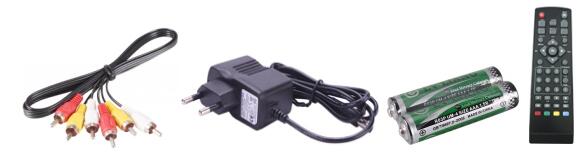

Accessories

HDTR-871F2 DVB-T&T2

Specifications

CPU and Memory

CPU

MSD7T01


MIPS 34K@960 MHz

DDR2

DDR2 512Mbit(64MByte)

Flash

32Mbit(4MByte)


DVB-T2 Standard

Fully compliant with ETSI EN 302 755 ( DVB-T2 )

Tuner

Connector Type

RF In/ANT In(IEC-Female),RF LOOP/ANT LOOP(IEC-Male)

Input Frequency

(UHF)470∽866MHz, (VHF)170∽230MHz

Bandwidth

6, 7, 8MHz

Signal Input Level

-82∽-20dBm

Input Impedance

75 Ohm

Active Antenna

5V(On/Off), Imax=100mA

Demodulation Scheme

QPSK, 16-QAM, 64-QAM, 256-QAM

FFT

1K, 2K, 4K, 8K, 16K, 32K

FECE mode

1/2, 2/3, 3/4, 3/5, 4/5, 5/6

Guard Interval

1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256

Software Function

OS

ECOS

EPG

Fully support to 8 days Electronic Program Guide(EPG)

Video Decoding

MPEG1, MPEG2, MPEG4, H264, VC-1, MOTION JPEG, MPG, MP4

Video Format

avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts

Audio  Decoding

MPEG1-L1/L2/L3/, wma,AAC

Audio Format

mp3, wma, ogg

Picture Format

JPEG, BMP, PNG

Video Resolution

480i, 480P, 576i, 576P, 720P, 1080i, 1080P

Video Aspect Ratio

4:3(LB/SCAN), 16:9(LB/FIT)

Analog Video System

PAL, NTSC

OSD Language

9 kinds of language(English,Czech,Danish,French,German,

Italian,Russian,Thai,Portuguese,Spanish,Swedish,Serbian)

LCN Sort

Support Logic Channel Number(LCN)

Teletext

VBI insertion for Teletext,CC and WSS

Time Shift

Support Time Shift

Hardware Interface

Video Output

RCA(CVBS,L/R),HDMI Interface

SPDIF Output

none

USB Interface

1*USB2.0

Button

POWER, MENU, CH+, CH-

Power supply

DC Input 5V/1.5A,7.5WMax
