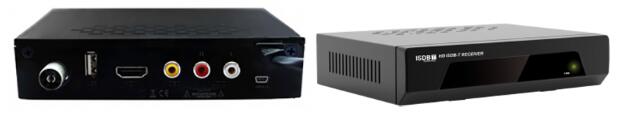

HDTR-281
MXT

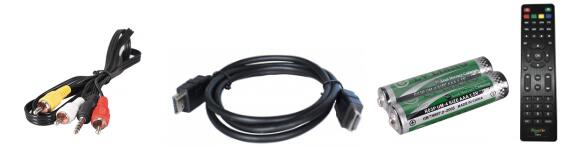

Accressories
Standard: ISDB-T
Features
● Fully Compliant with ISDB-T
● Support MEPG-4 AVC(H.264) MP/HP@L4.1
Support MEPG-2 MP@HL/ML
● HE AAC5.1, HE AAC+, DD, DD+ (Dolby is optional)
● Multi Bandwidth: 6M 7M & 8M
● Supports 64QAM, 16QAM and QPSK (4QAM) sub-carriers
● Video decoding and output: 1080p/1080i/720p
● Analog Video output: PAL/NTSC
● Conversion between SD programs and HD programs
● USB2.0 supported for upgrade, PVR and time shifting
● SupportParental Control,Teletext,Subtitle
● Aspect ratio: 4:3/16:9,By Pan & Scan and Letter Box conversion
● Electronic program guide (EPG)
● Software upgrade (OAD or USB)
● 32 bits true color OSD
● Program editor
● Support Favorite Group
Specifications
CPU and Memory | CUP | MSD7805 |
MIPS 34K@600 MHz | ||
DDR2 | DDR2 512Mbit(64MByte) | |
Flash | 32Mbit(4MByte) | |
Tuner | Connector Type | ANT In(IEC-Female),ANT LOOP(IEC-Male) |
Input Frequency | (UHF)470∽866MHz, (VHF)170∽230MHz | |
Bandwidth | 6, 7, 8MHz | |
Signal Input Level | -78∽-20dBm | |
Input Impedance | 75 Ohm | |
Active Antenna | 5V(On/Off), Imax=100mA | |
Demodulation Scheme | QPSK, 16-QAM, 64-QAM | |
1FFT | 1K, 2K, 4K, 8K, 16K, 32K | |
FECE mode | 1/2, 2/3, 3/4, 5/6, 7/8 | |
Guard Interval | 1/4, 1/8, 1/16, 1/32 | |
Software Function | EPG | Fully support to 7 days Electronic Program Guide(EPG) |
Video Decoding | MPEG1, MPEG2, MPEG4, H264, VC-1, MOTION JPEG, MPG, MP4 | |
Video Format | avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts | |
Audio Decoding | MPEG1-L1/L2/L3, wma,AAC | |
Audio Format | mp3, wma, agg | |
Picture Format | JPEG, BMP, PNG | |
Video Resolution | 480i, 480P, 576i, 576P, 720P, 1080i, 1080P | |
Video Aspect Ratio | 4:3(LB/SCAN), 16:9(LB/FIT) | |
Analog Video System | PAL, NTSC, SECAM | |
OSD Language | nine kinds of language | |
LCN Sort | Support Logic Channel Number(LCN) | |
Teletext | VBI insertion for Teletext,CC and WSS | |
Time Shift | Support Time Shift | |

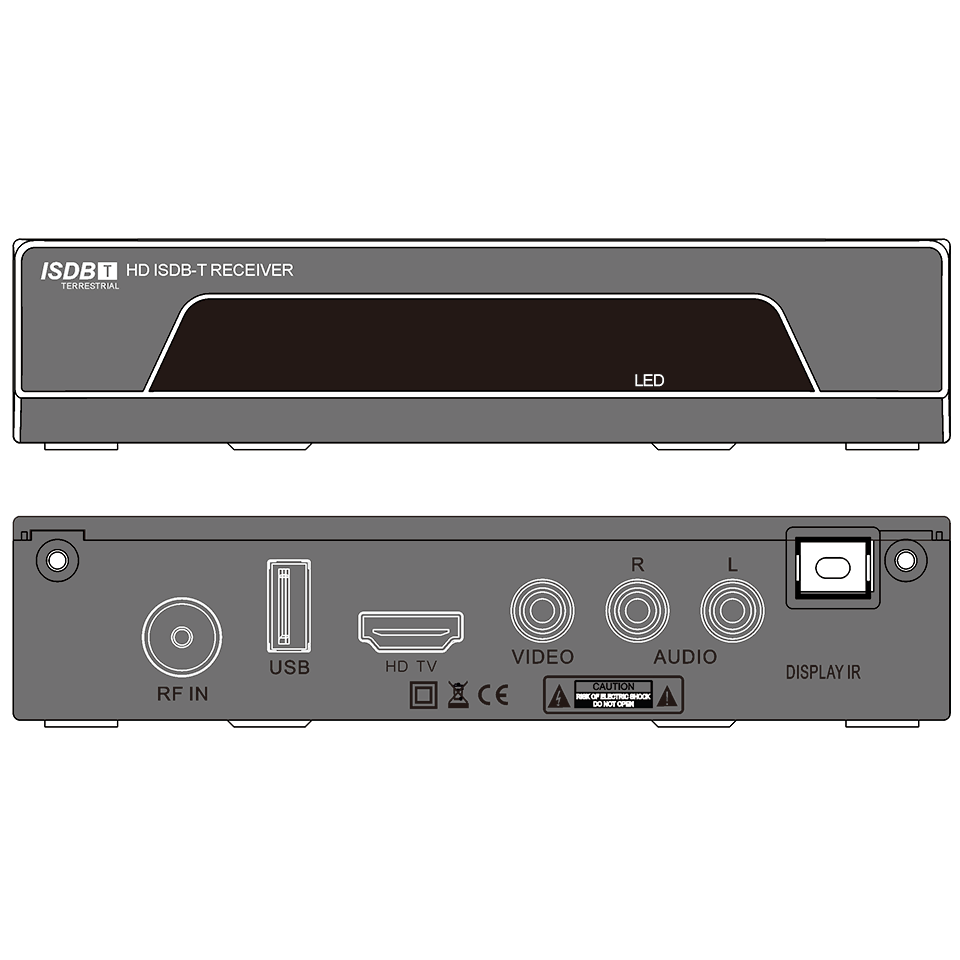

Hardware Interface | Video Output | RCA(CVBS, L/R), HDMI Interface |
SPDIF Output | 1*Coaxial | |
USB Interface | 1*USB2.0 | |
Button | POWER, CH-, CH+ | |
Power supply | AC Input 100~240V 50Hz, 10WMax |
